This frameset has a $50 oversize shipping fee.

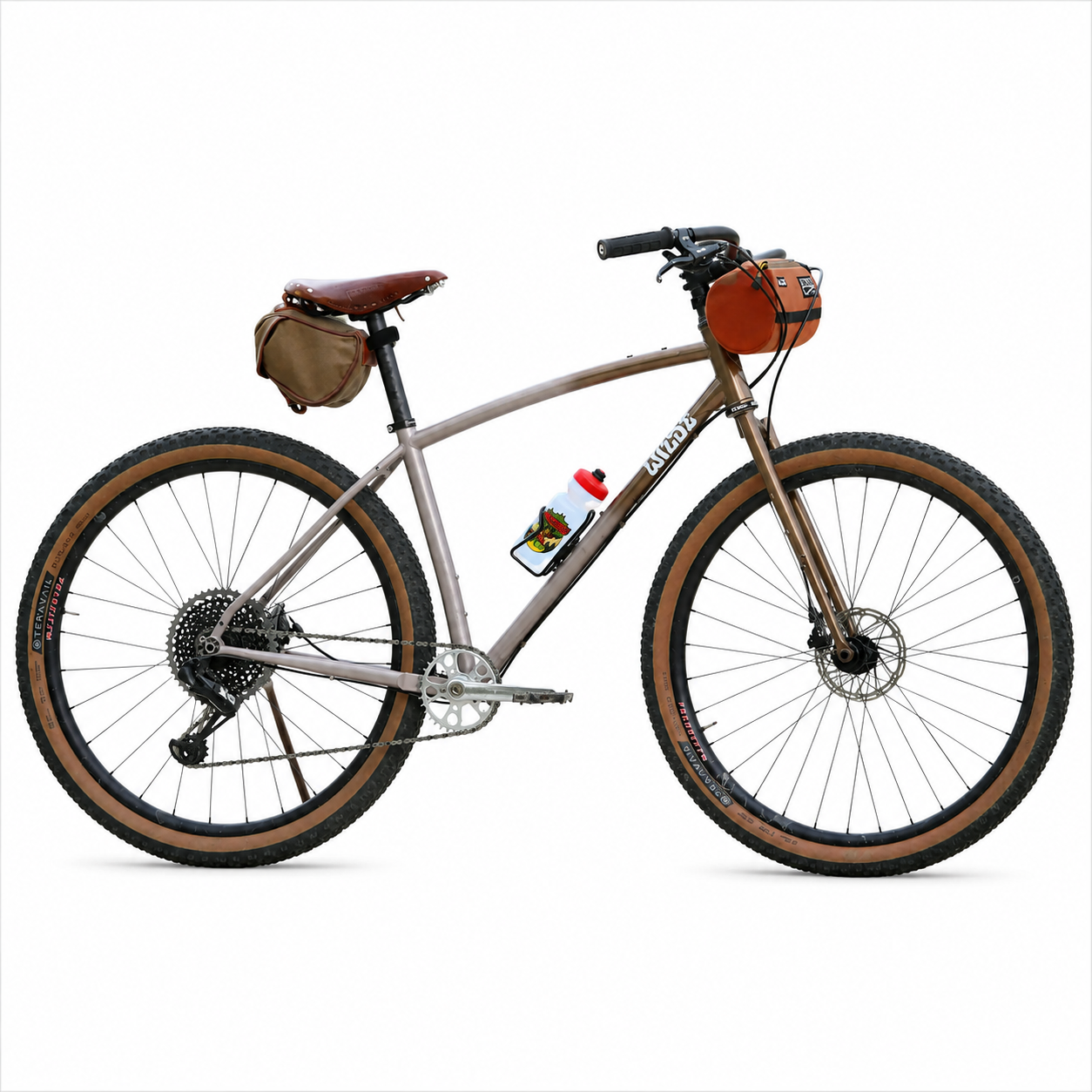

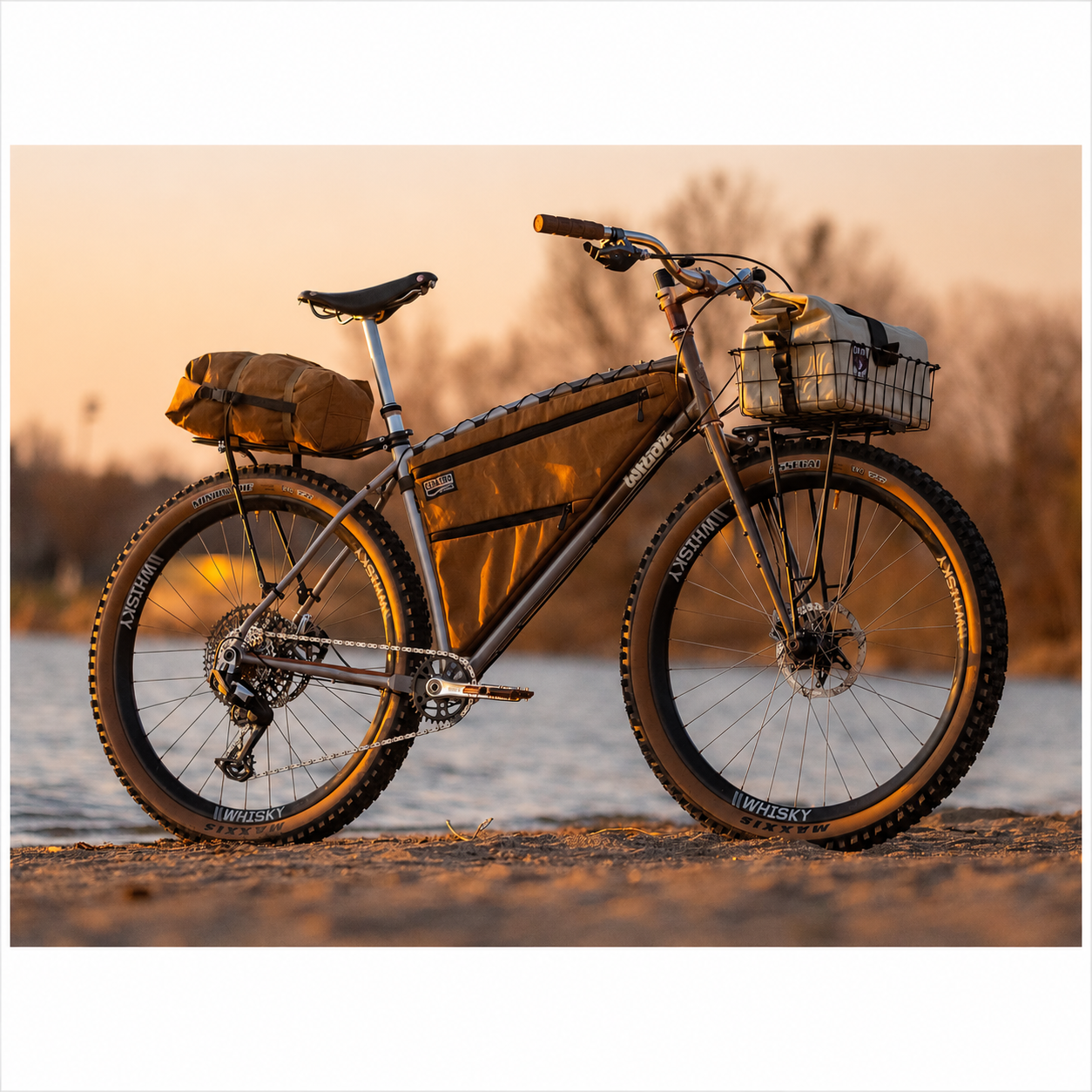

  • Wilde Supertramp frameset in Dirt Champagne designed for custom builds for bikepacking, ATBs, trekking with mounts for all accessories - example of fully loaded and built Supertramp
  • Wilde Supertramp frameset in Dirt Champagne designed for custom builds for bikepacking, ATBs, trekking with mounts for all accessories
1 2

Wilde

Supertramp UDH Frameset

Supertramp UDH Frameset

$2,199.00 CAD
$2,199.00 CAD $2,199.00 CAD
Sale Sold out
Shipping calculated at checkout.
Colour
Size

Description |

The Wilde Supertramp Frameset is a versatile steel platform built for bikepacking, trekking, and all-terrain riding. Designed to handle everything from month-long backcountry tours to everyday trips around town, the Supertramp is built to be configured for a wide range of riding styles. Handmade in Taiwan through Wilde's partnership with the renowned Maxway factory, the frameset pairs a proprietary double-butted chromoly frame with Wilde's signature steel segmented fork and a comprehensive suite of mounts for racks, bags, bottles, and accessories.

Designed around large-volume 29er tires, the Supertramp features clearance for up to 29 × 2.6" tires in the frame and 29 × 2.8" in the fork, along with stealth dropper routing, modular cable guides compatible with Paragon Machine Works guides, and a front triangle optimized for a large frame bag. Its comfortable off-road touring geometry combines a tall stack, long reach, and balanced trail figure to provide confident handling on loaded adventures while remaining equally capable as an everyday all-rounder.

Features |

  • Handmade in Taiwan by Maxway
  • Wilde TLC (Tough, Light, Compliant) proprietary double-butted chromoly tubing
  • Signature steel segmented fork
  • Designed for bikepacking, trekking, and all-terrain riding
  • Four frame sizes
  • Three-pack mounts on the top and bottom of the down tube
  • Bottle mount on seat tube
  • Top tube feed bag mounts
  • Fender mounts
  • Stealth dropper post routing
  • Front triangle optimized for a large frame bag
  • Modular cable guide system compatible with Paragon Machine Works guides
  • Full loop cable guides on the stays
  • Frame clearance for up to 29 × 2.6" tires
  • Fork clearance for up to 29 × 2.8" tires
  • Mid-blade rack mounts
  • Double eyelet fork ends
  • Three-pack mounts on fork
  • Internal dynamo routing
  • Compatible with Surly 8-Pack and 24-Pack racks
  • Comfortable off-road touring geometry
  • Tall stack height
  • Long reach optimized for modern short stems
  • Balanced trail for loaded handling

Specs |

Product Wilde Supertramp Frameset
Frame Material Wilde TLC Proprietary Double-Butted Chromoly Steel
Fork Wilde Steel Segmented Fork
Manufacturing Handmade in Taiwan by Maxway
Intended Use Bikepacking, Trekking, All-Terrain Riding
Frame Tire Clearance 29 × 2.6"
Fork Tire Clearance 29 × 2.8"
Maximum Chainring 36T
Headset ZS44 (Grey/Green) / EC34/34 (Dirt Champagne)
Bottom Bracket 73mm English Threaded
Brake Mount (Frame) Post Mount
Brake Mount (Fork) ISO Disc Mount
Front Hub Spacing 110mm Boost
Rear Hub Spacing Boost
Rear Axle 12mm Thru Axle (M12 × 1.0 × 179.5mm)
Front Axle 15mm Thru Axle (1.5 × 135mm)
Seatpost Diameter 31.6mm
Seat Collar 35.0mm
Cable Routing Modular Downtube Guides & Full Loop Stay Guides
Dropper Routing Internal (Stealth)
UDH Compatibility Dirt Champagne Only (Grey/Green Not UDH Compatible)
Rack Compatibility Surly 8-Pack & 24-Pack
Fork Features Three-Pack Mounts, Mid-Blade Rack Mounts, Double Eyelets, Internal Dynamo Routing
