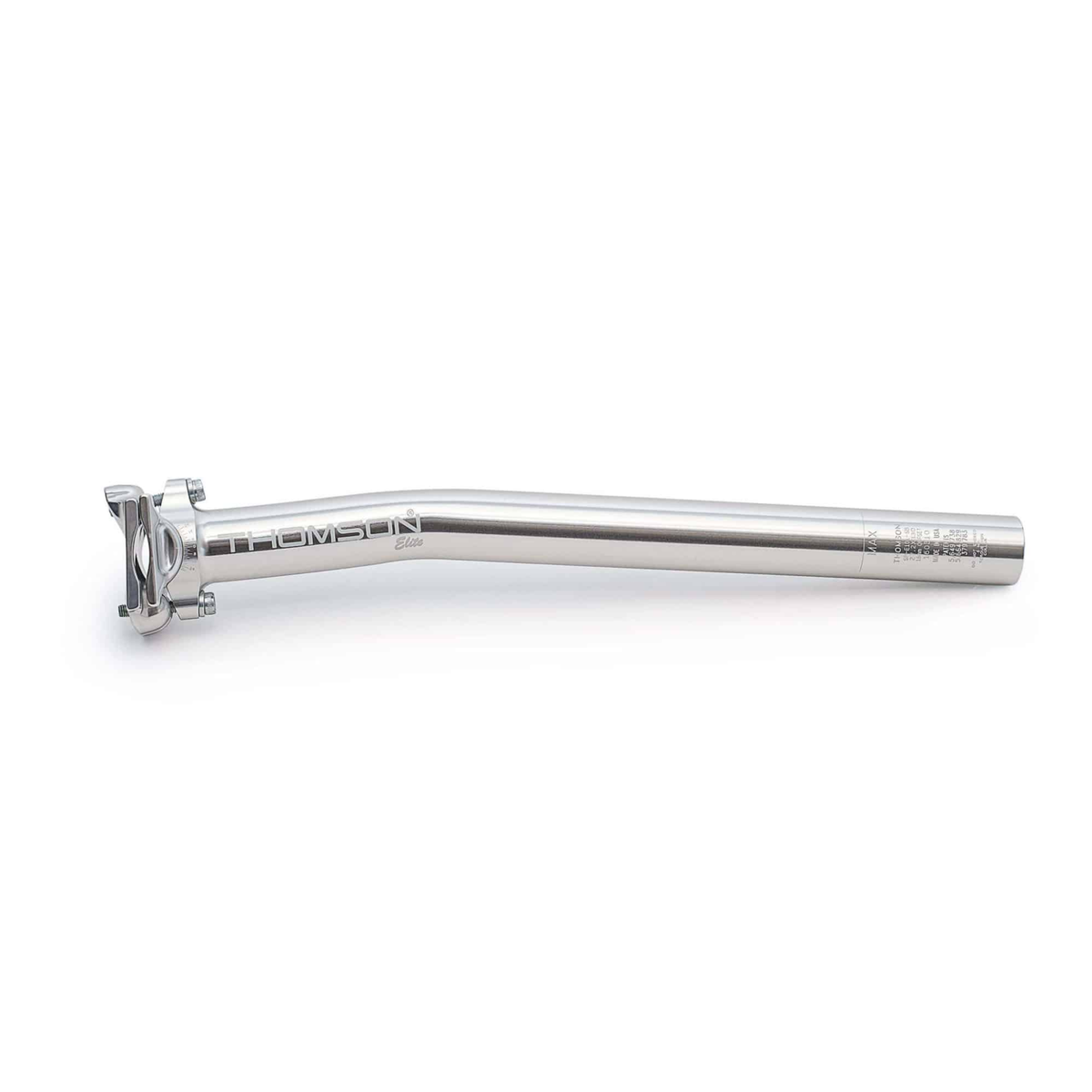

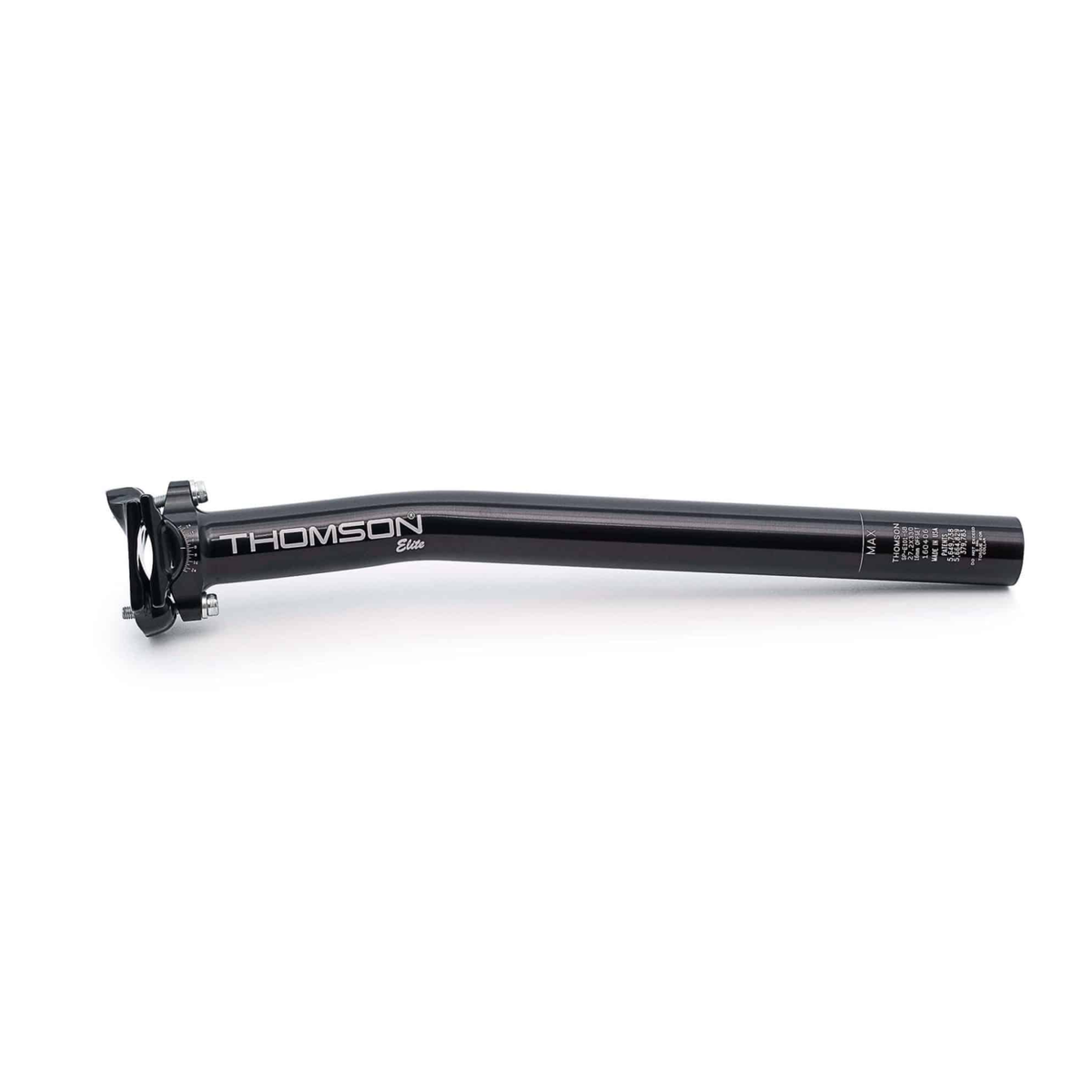

Elite Seatpost Setback

Description |

The Thomson Elite Seatpost Setback pairs Thomson’s proven Elite construction with a setback design. Its forged clamps, integrally machined head and elliptically extruded 7000-series aluminum body are engineered for strength, low weight and easy adjustment. The tube and head are machined as one piece rather than pressed or bonded together.

A 41mm seat rail grip helps prevent rail bending from impact loads, while infinite tilt adjustment from -5° to +29° makes it easy to dial in saddle position. Low-profile clamps keep the hardware between the saddle rails, and all parts remain captive during installation. Supplied with a 7x7 saddle clampset and made in Georgia, USA.

Features |

• Setback version of the Thomson Elite Seatpost
• Forged clamps
• Integrally machined head
• Elliptically extruded 7000-series aluminum body
• Tube and head integrally machined from one piece
• Natural ellipse bore for an optimized strength-to-weight ratio
• 41mm seat rail grip length
• Bending fuse design intended to prevent catastrophic failure
• Clamp, head and upper tube withstand up to 350 ft-lb of torque
• Tube begins to yield and bend at the seat tube clamp at approximately 250 ft-lb of torque
• Infinite saddle tilt adjustment from -5° to +29°
• Low-profile clamps with swivel nuts positioned between the saddle rails
• Captive parts allow saddle attachment without disassembling the seatpost
• Includes 7x7 saddle clampset
• Over 40% stronger in Thomson ultimate strength testing than the strongest production seatposts Thomson tested
• Double the fatigue life of other production seatpost models tested by Thomson
• Certified to EN 14766:2006 MTB and DIN CERTCO:2006 MTB
• Made in Georgia, USA
