Surly
Skid Loader
Skid Loader
Couldn't load pickup availability
** Additional Freight Applies if shipping.
Description |

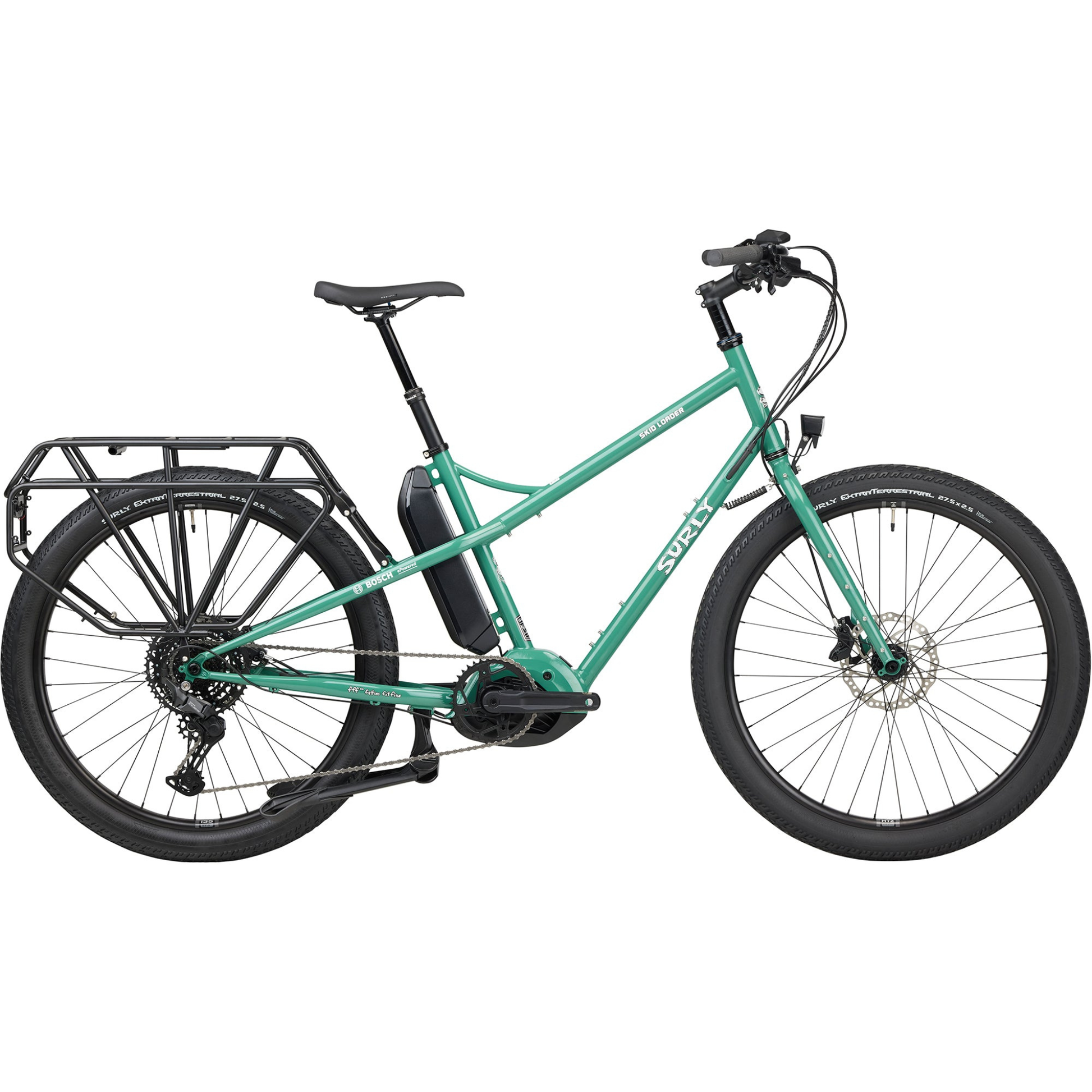

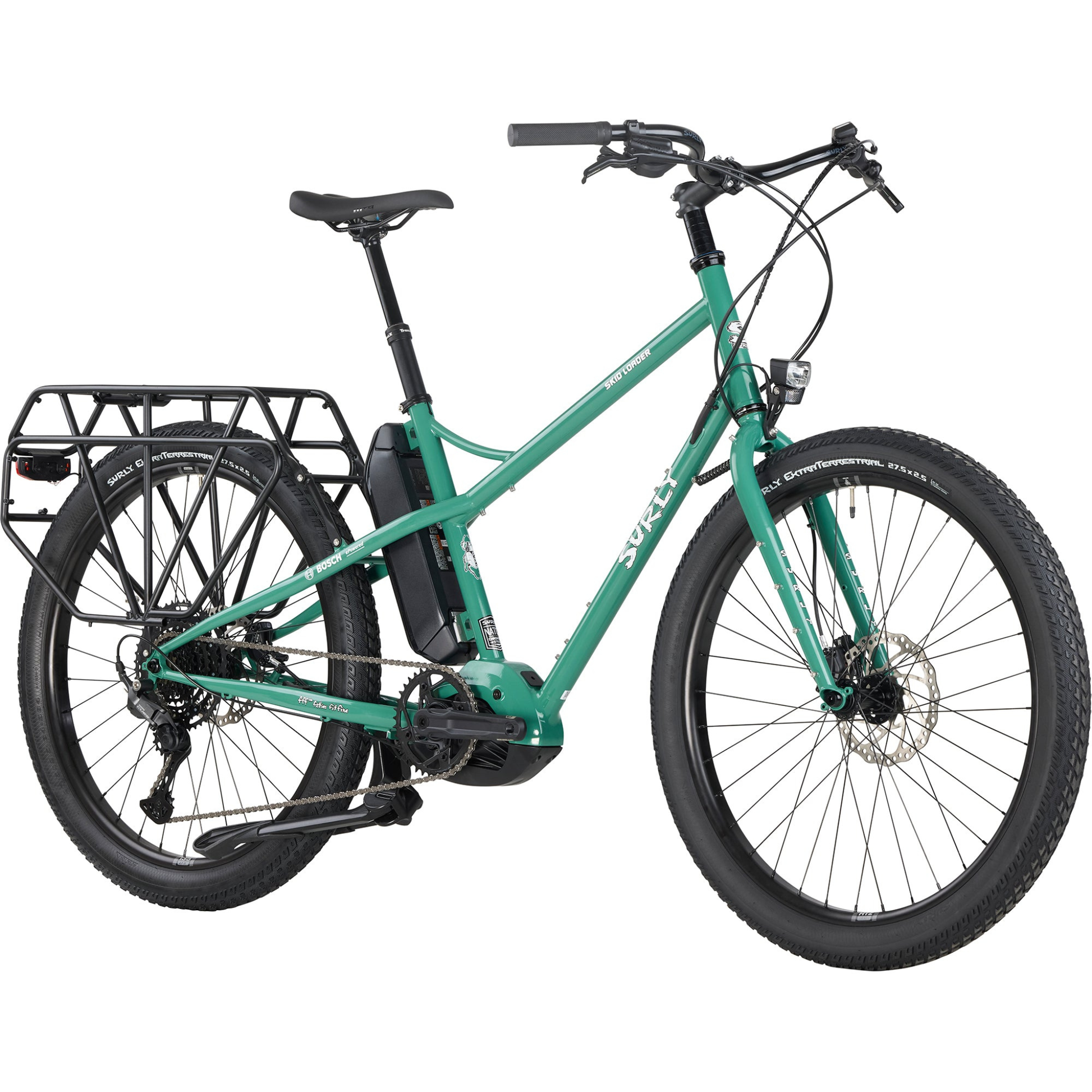

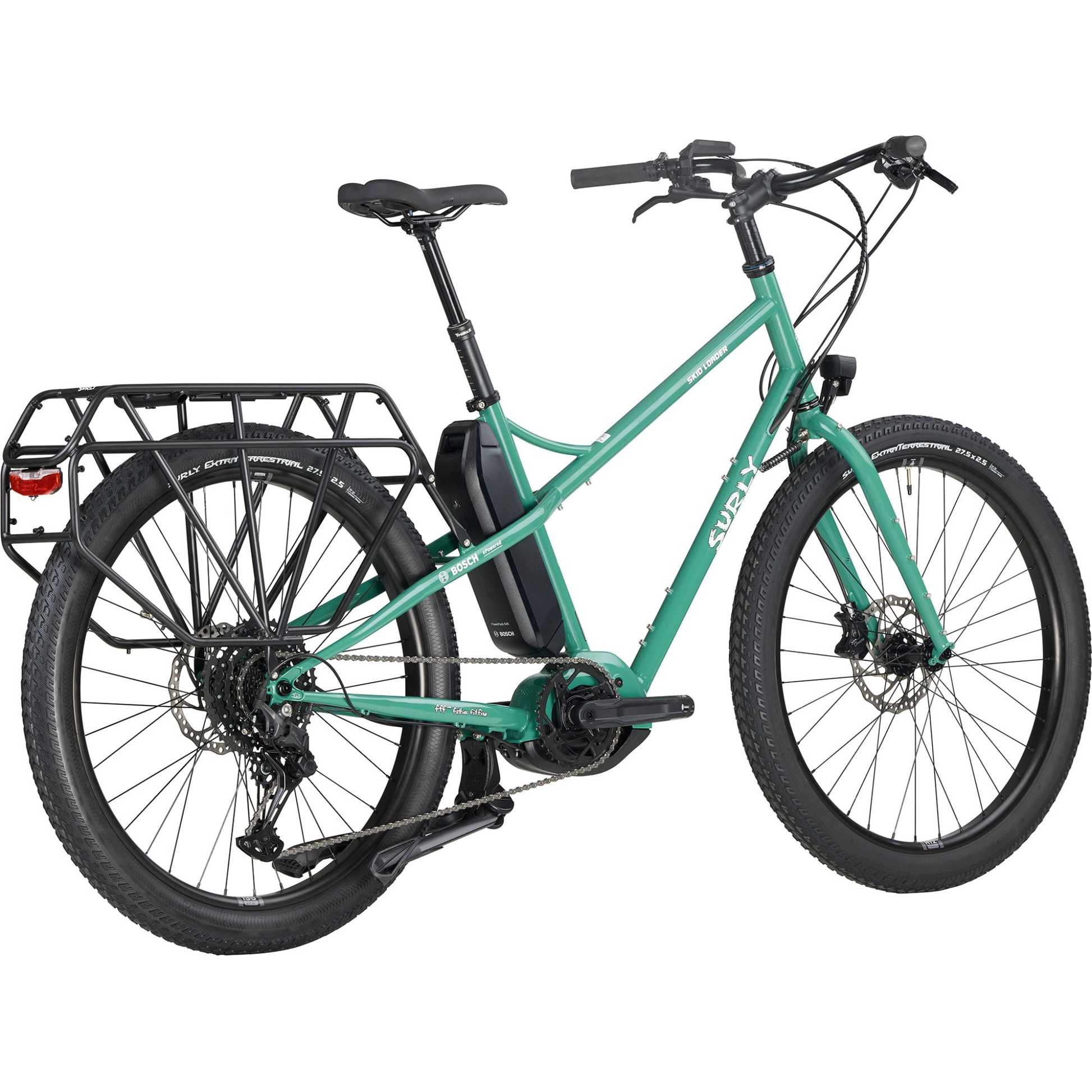

Meet the Surly Skid Loader in Illegal Smile Green, a compact electric cargo bike that’s built to carry heavy loads without feeling like a bulky truck. At Dismount, we love this bike because it shrinks the footprint of a cargo rig while maintaining serious utility. You get robust steel construction, Bosch electric assist, integrated lighting, and room for wide tires.. all wrapped up in a nimble, maneuverable package.
When you pedal, the electric assist kicks in smoothly; when you load up groceries, gear, or even your partner or child, the Skid Loader holds its composure. The rear rack is rated for 100 lb, and the platform deck itself supports 59 lb. Dual-battery ready, full internal routing, dropper compatibility, and lots of mounts make it an ideal everyday cargo solution. And at Dismount Bike Shop Toronto, we’ll help you dial in the fit, assist mode, and accessory setup to match your ride style!
Features:
- 100% Surly Chromoly steel frame & fork, TIG welded with E.D. coating
- Bosch Performance Line Cargo (Smart System) mid-drive motor
- Purion 200 Remote with 4 assist levels
- Dual-battery capability for extended range
- Rear rack rated for 100 lb (deck itself rated 59 lb) with beefy M6 hardware
- Internal routing for dropper, brakes, shifter, lights
- Mounts for fenders, front rack, and multiple bottle cages
- Dual-leg kickstand and front-wheel stabilizer for load stability
- Integrated headlights and taillights for visibility
- Tire clearance: 27.5 × 2.8″ (without fenders)
- Approx. range: 24–80 km (varies by load, assist level, terrain)
- Support for UL 2849 / UL 2271 standards in e-bike system
Specs │
Frame | 100% Surly Chromoly Steel, Natch tubing, double-butted main traingle, TIG welded, E.D. coated |
Fork | 100% Surly Chromoly Steel, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated |
Seatpost | Tranz-X YSP15 Dropper, 120 mm travel |
Headset |
Cane Creek Viscoset Upper / 40 Series Lower 1-1/8 |
Brakes |
Tektro HD-M750, 4 piston |
Brake Levers | Tektro HD-M750 |
Shifters |
Shimano CUES U6000 |
Stem |
Kalloy 31.8 |
Handlebar | Surly Terminal |
Grip/Tape | Velo Black |
Saddle | WTB Volt Medium |
Crankset |
FSA CK-763, 38t |
Rear Derailleur | Shimano CUES U6000 GS |
Cassette |
Shimano Linkglide LG300 11-48t 10sp |
Chain | Shimano Linkglide LG500 |
Front Hub |
Novatec 15 x 110 mm, 6-bolt, 36h |
Rear Hub |
Novatec 12 x 148 mm, 6-bolt, 36h |
Rims |
WTB HTZ Trail i35 27.5", TCS 2.0 |
Tires | Surly ExtraTerrestrial 27.5 x 2.5", 60 tpi, tubeless ready |
Drive Unit |
Bosch Performance Line Cargo (Smart System) with Purion 200 Remote |
Ebike Classification | Class 1 |
Max Assist Speed | 32km/h |
Motor Torque | 85nm |
Max Motor Assist | 400% |
Battery Watt Hours | 545Wh |
Battery Type | Frame mounted Lithium-ion, Bosch PowerPack 545 battery |
Removable Battery | Yes |
Battery Power Volts | 36V |
Battery Amp Hours | 14.4Ah |
Estimated Charge Time |
50% charge: approx. 1.8 hours 100% charge: approx. 4.9 hours |
Charger Included | Yes, Bosch 4A charger |
Gross Payload | 400-lb. max weight capacity (rider plus cargo) |
Throttle | No |
Walk Assist | Yes |
Lights Included | Yes (AXA Nxt 60 Front, AXA Blueline Rear) |
Rear Rack | Surly Skid Loader dedicated rear rack features M6 hardware and 100-lb. capacity. * The maximum cargo capacity of the deck alone is 59lb (27kg). Please see Skid Loader Rack Instructions in documents section below. |
Weight | 60lbs - Complete Bike in Medium |
