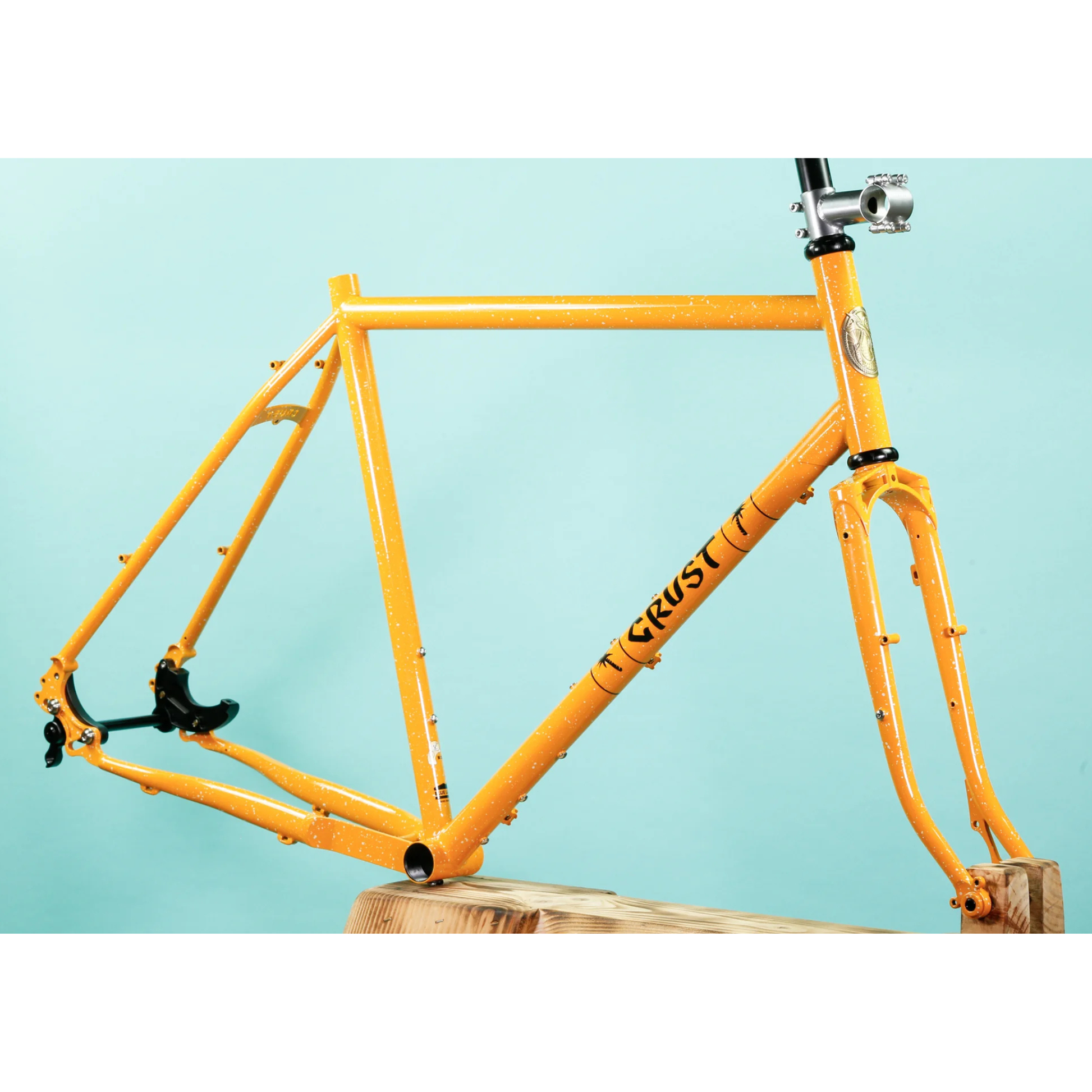

• Crust Bikes Evasion frameset complete right front side view

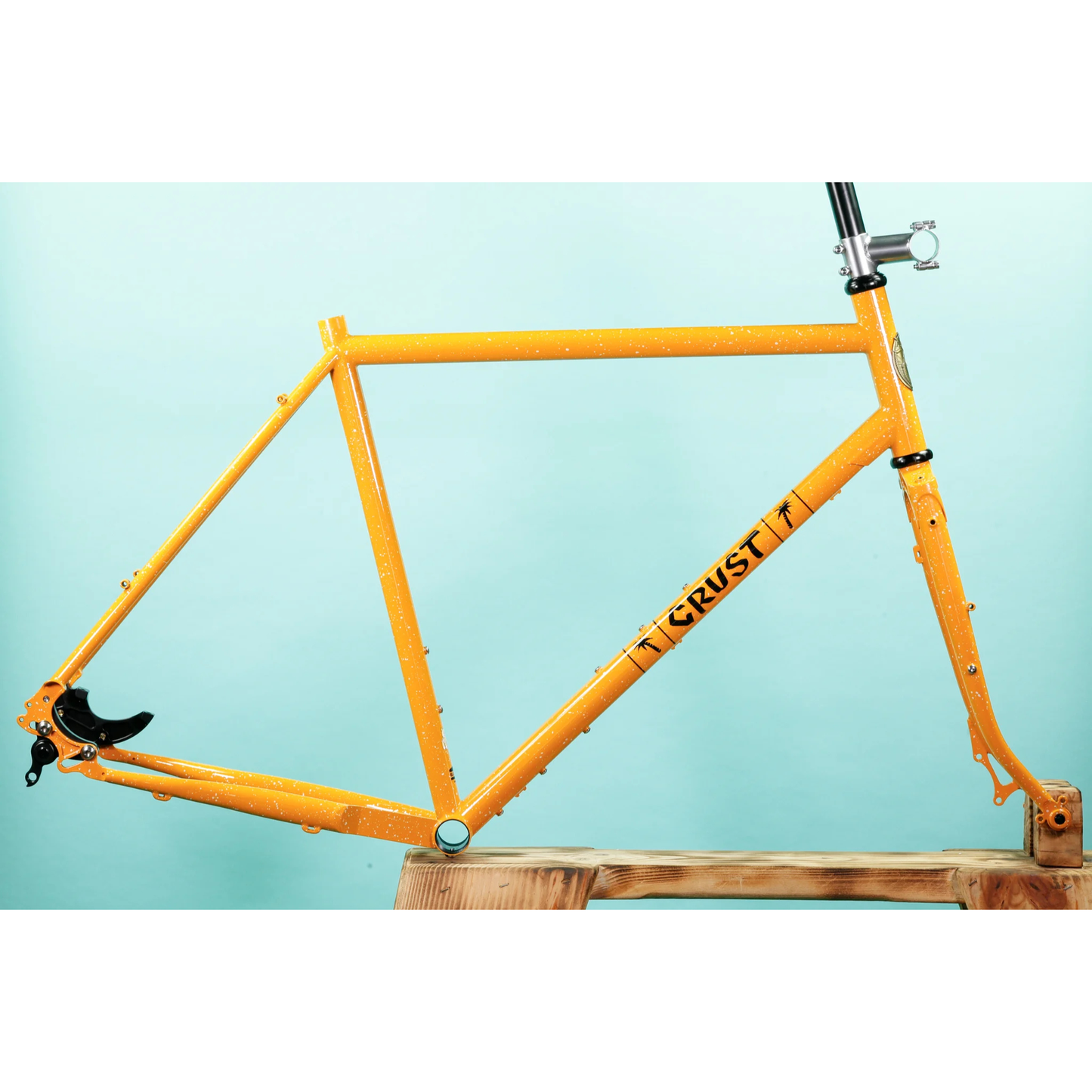

  • Crust Bikes Evasion frameset complete right side view

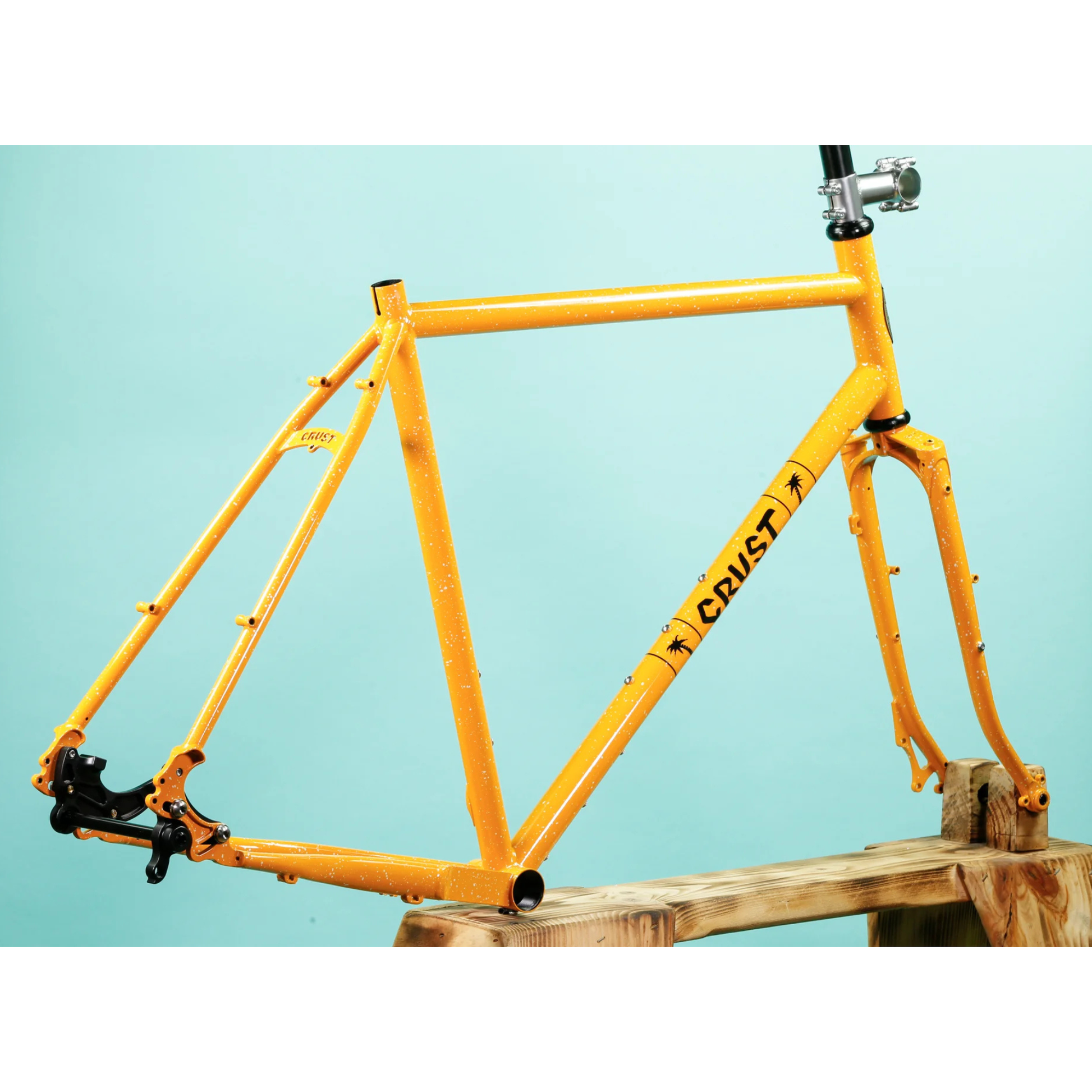

  • Crust Bikes Evasion frameset complete right rear side view

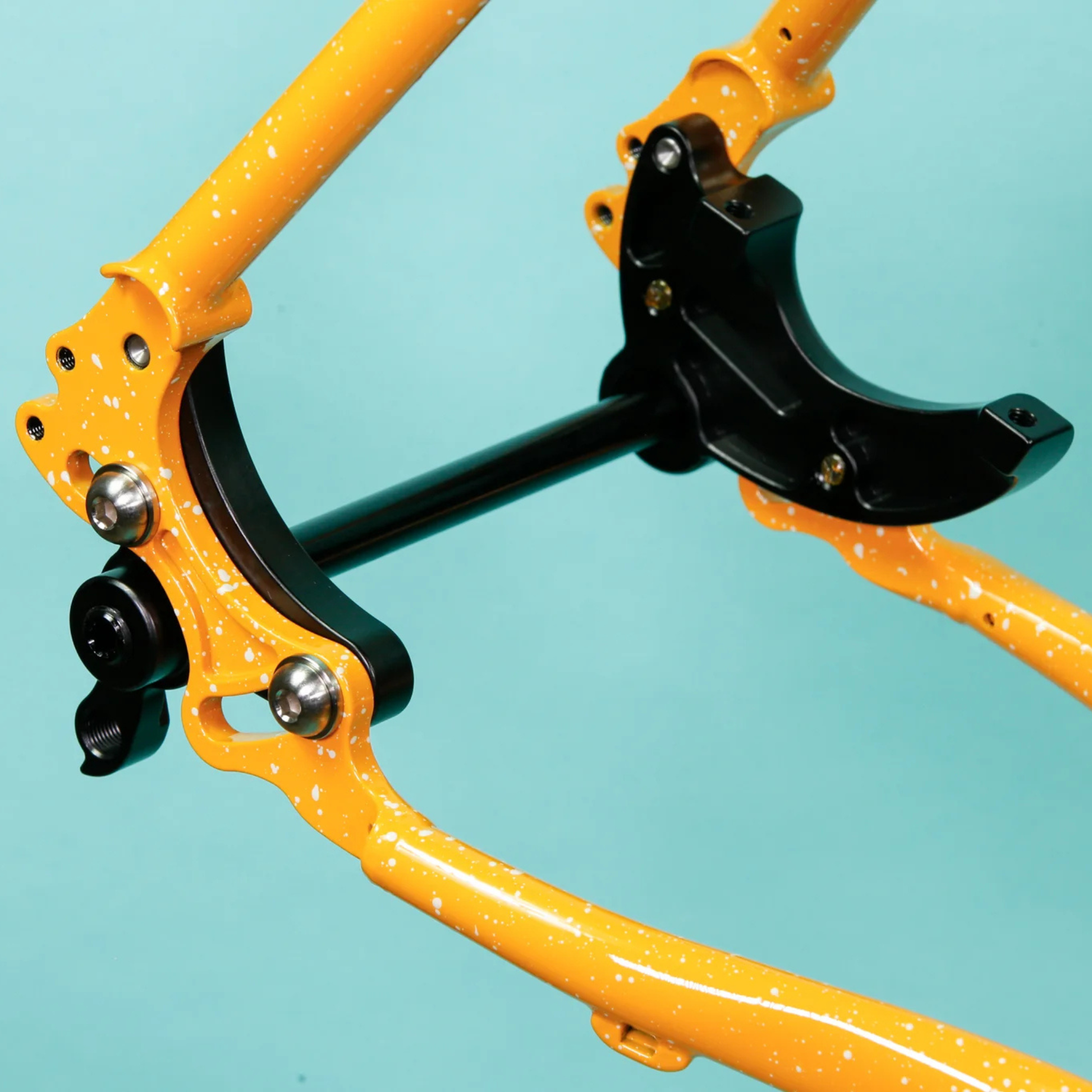

  • Crust Bikes Evasion frameset rear axle internal view

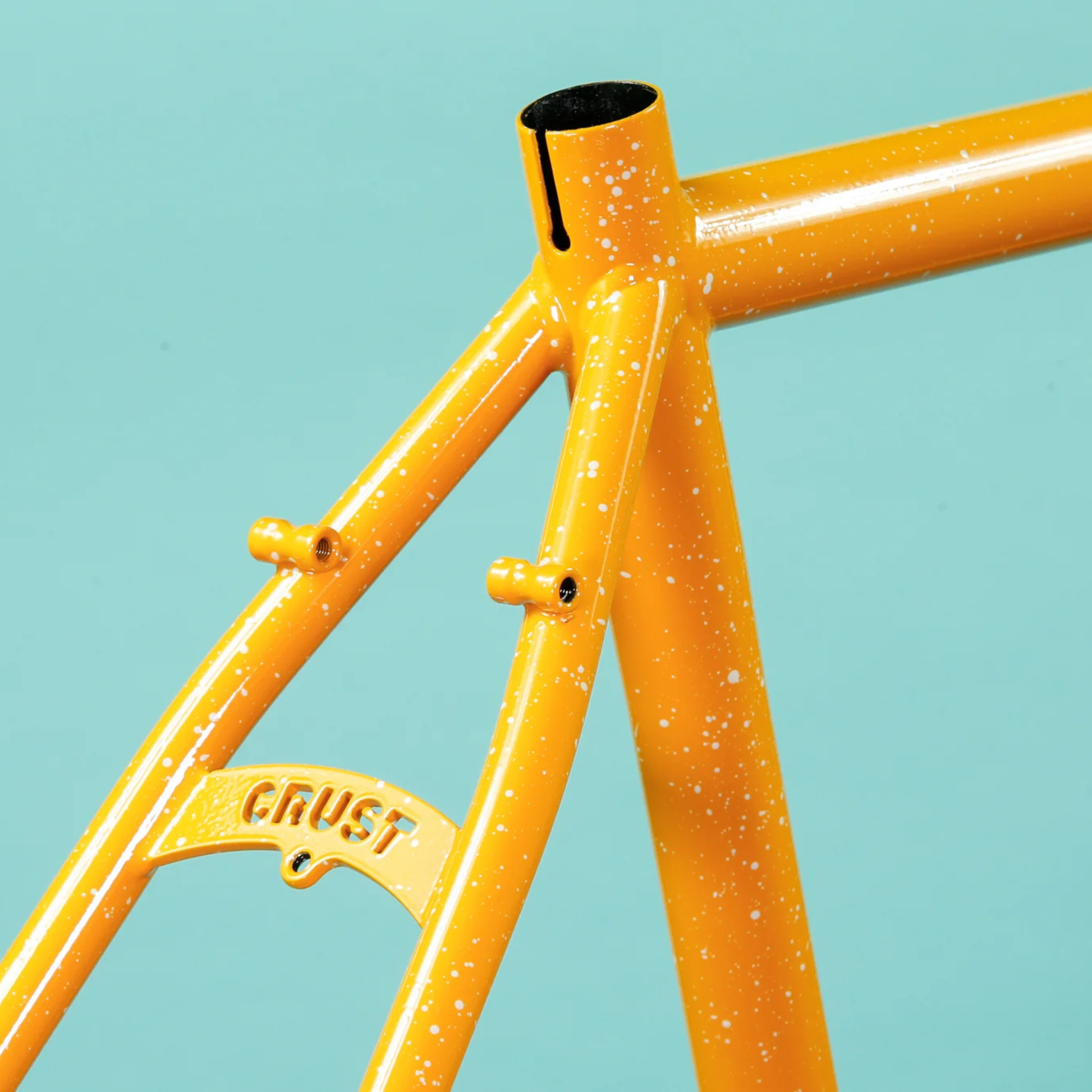

  • Crust Bikes Evasion frameset seat tube back view

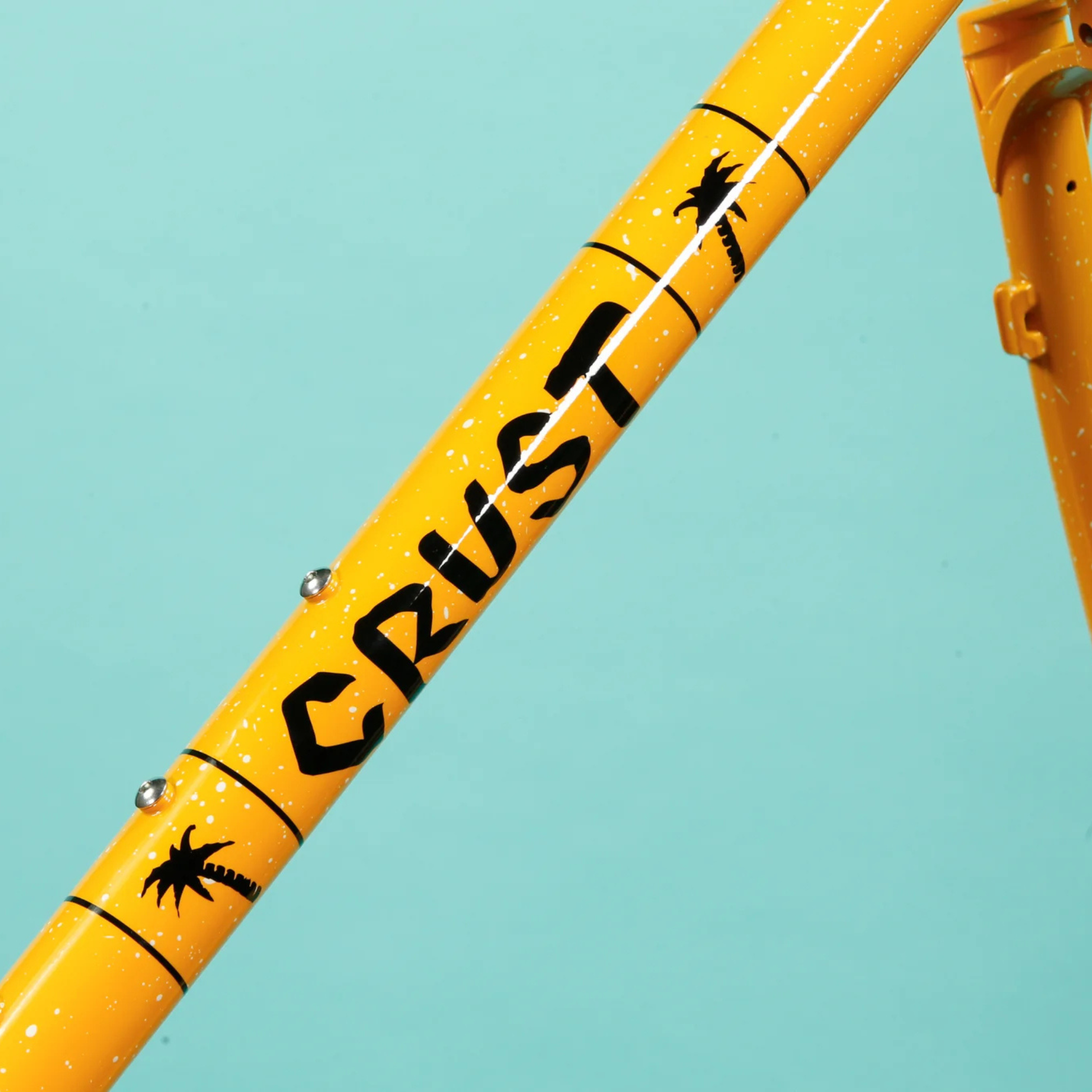

  • Crust Bikes Evasion frameset downtube with the. CRUST logo, close up detail

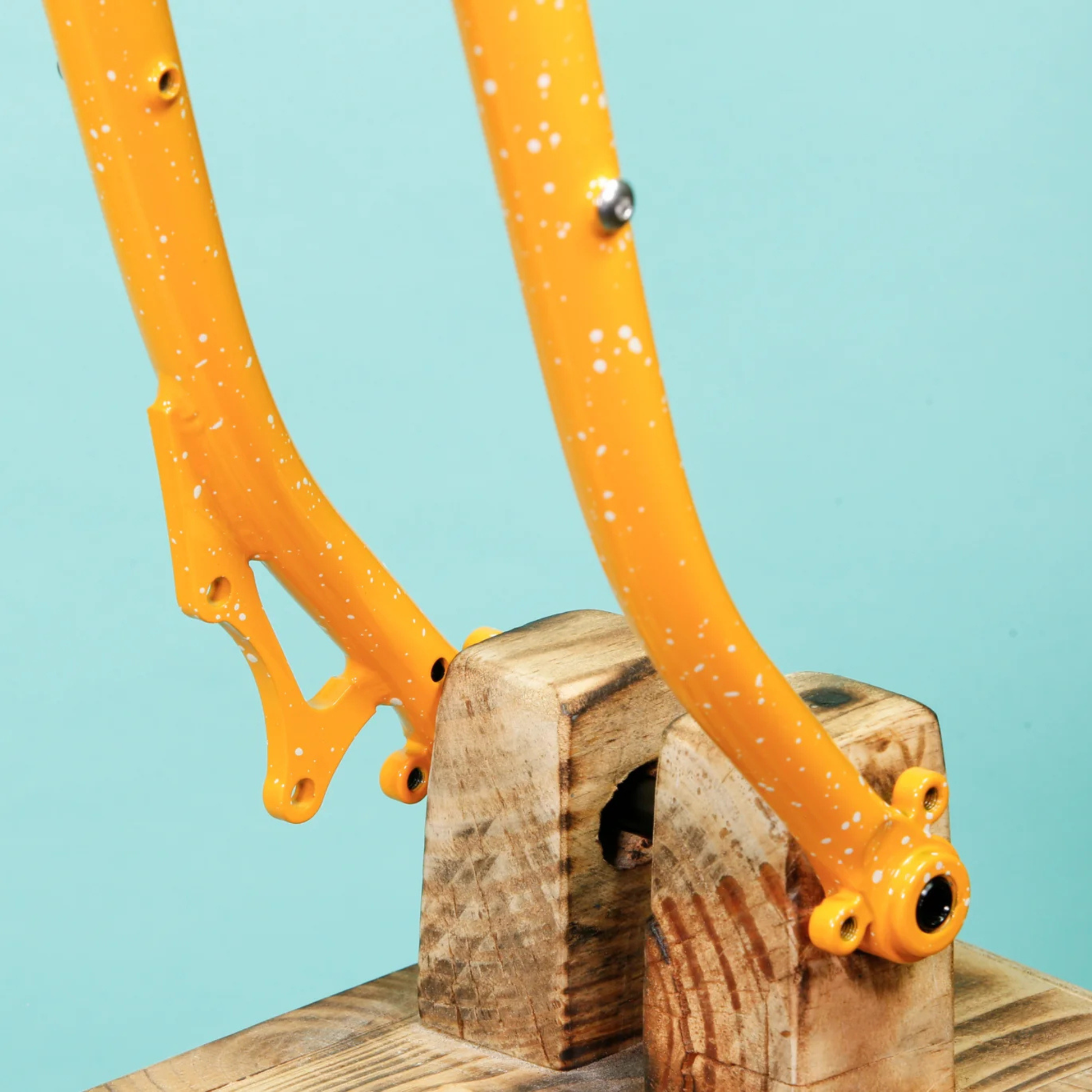

  • Crust Bikes Evasion frameset fork drops view

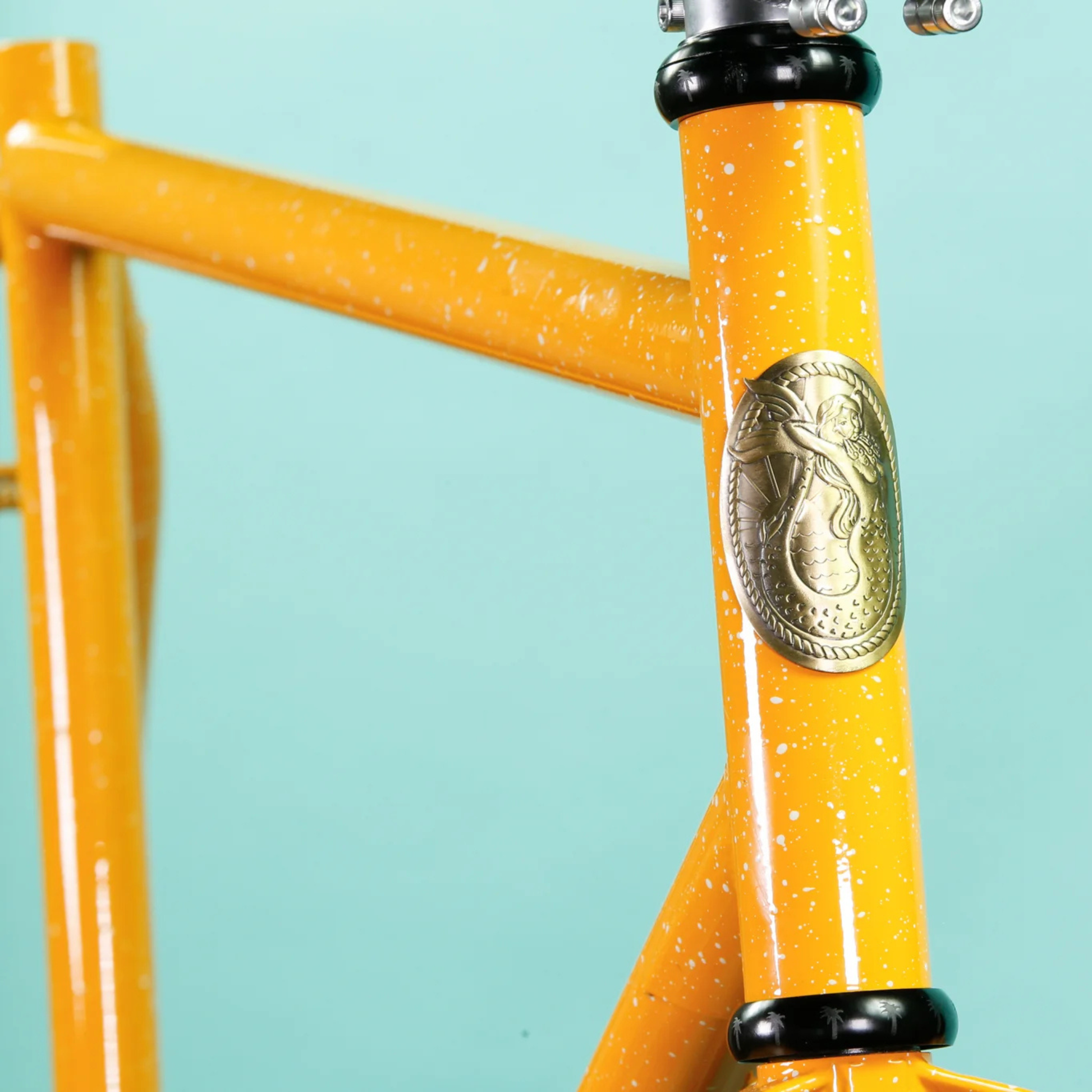

  • Crust Bikes Evasion frameset headtube close up view

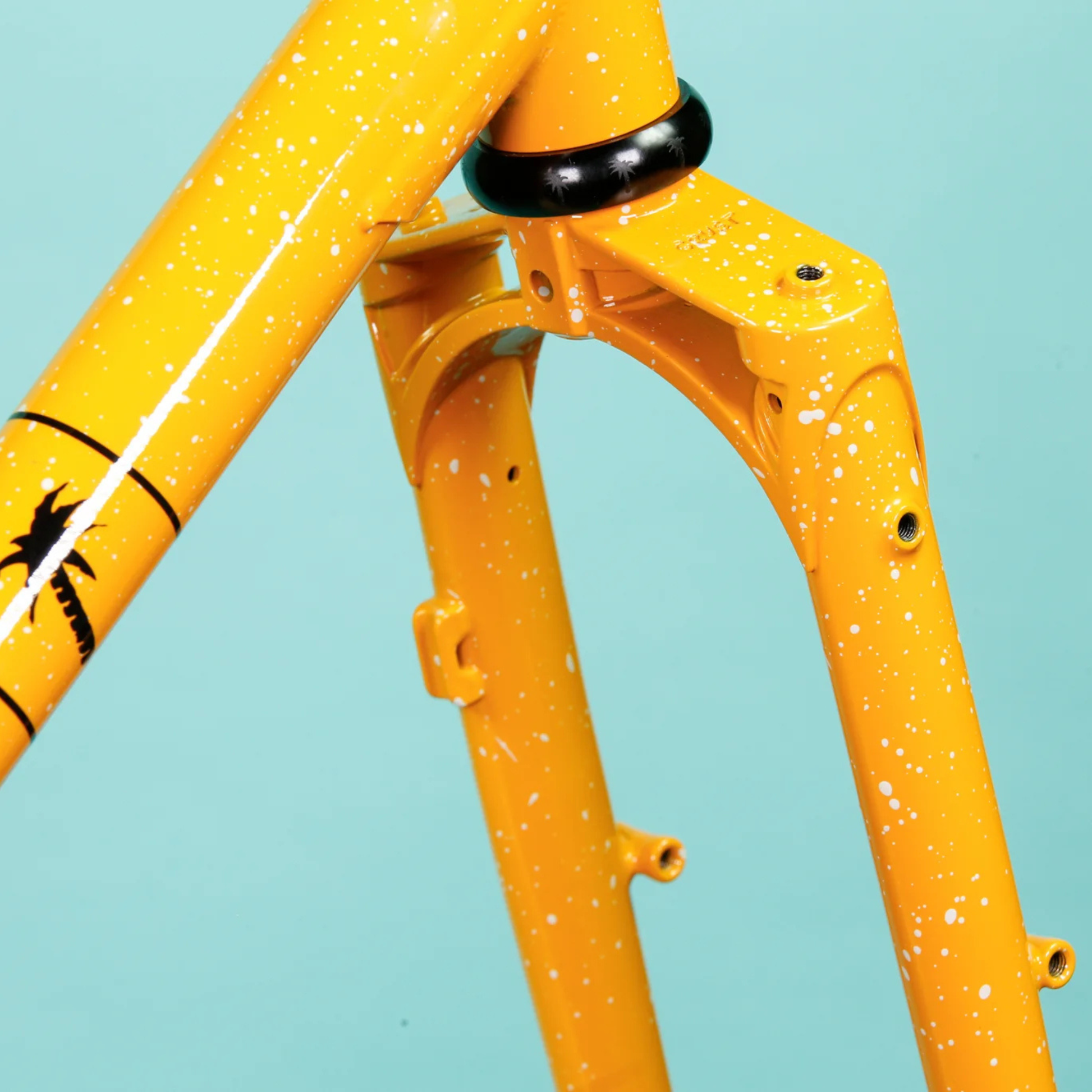

  • Crust Bikes Evasion frameset fork and lower racing crown
  • Crust Bikes Evasion frameset downtube top weld

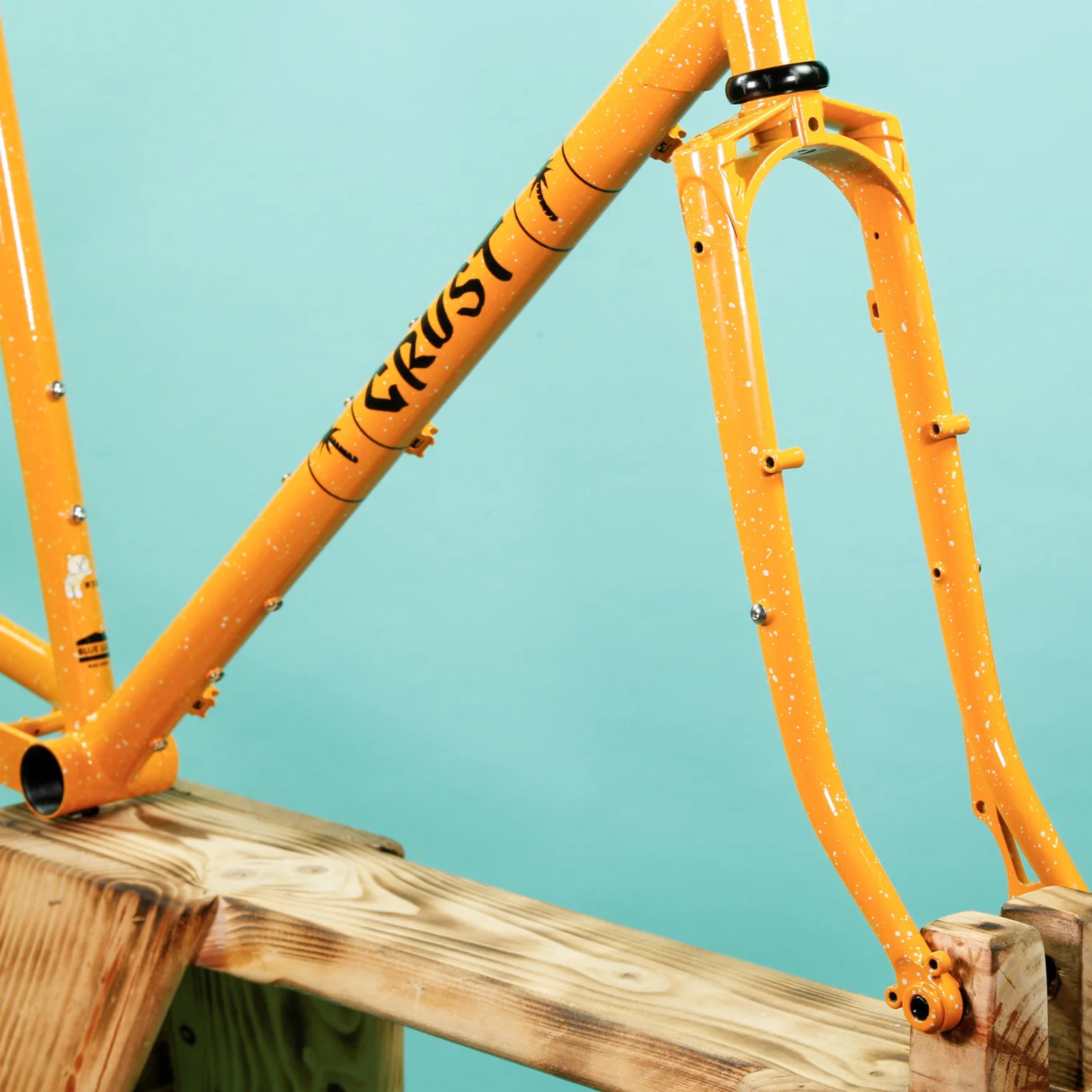

  • Crust Bikes Evasion frameset fork and downtube view

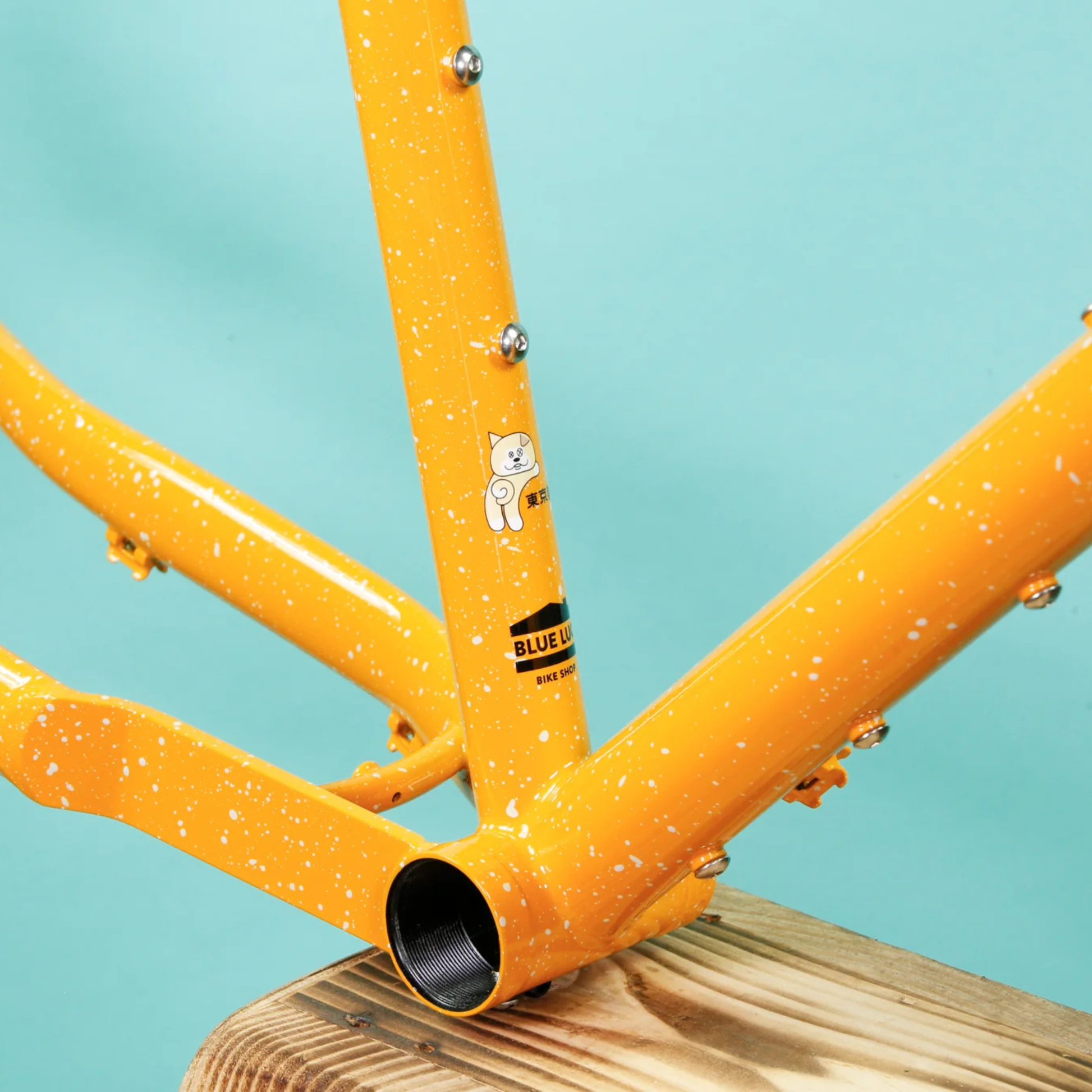

  • Crust Bikes Evasion frameset bottom bracket shell view

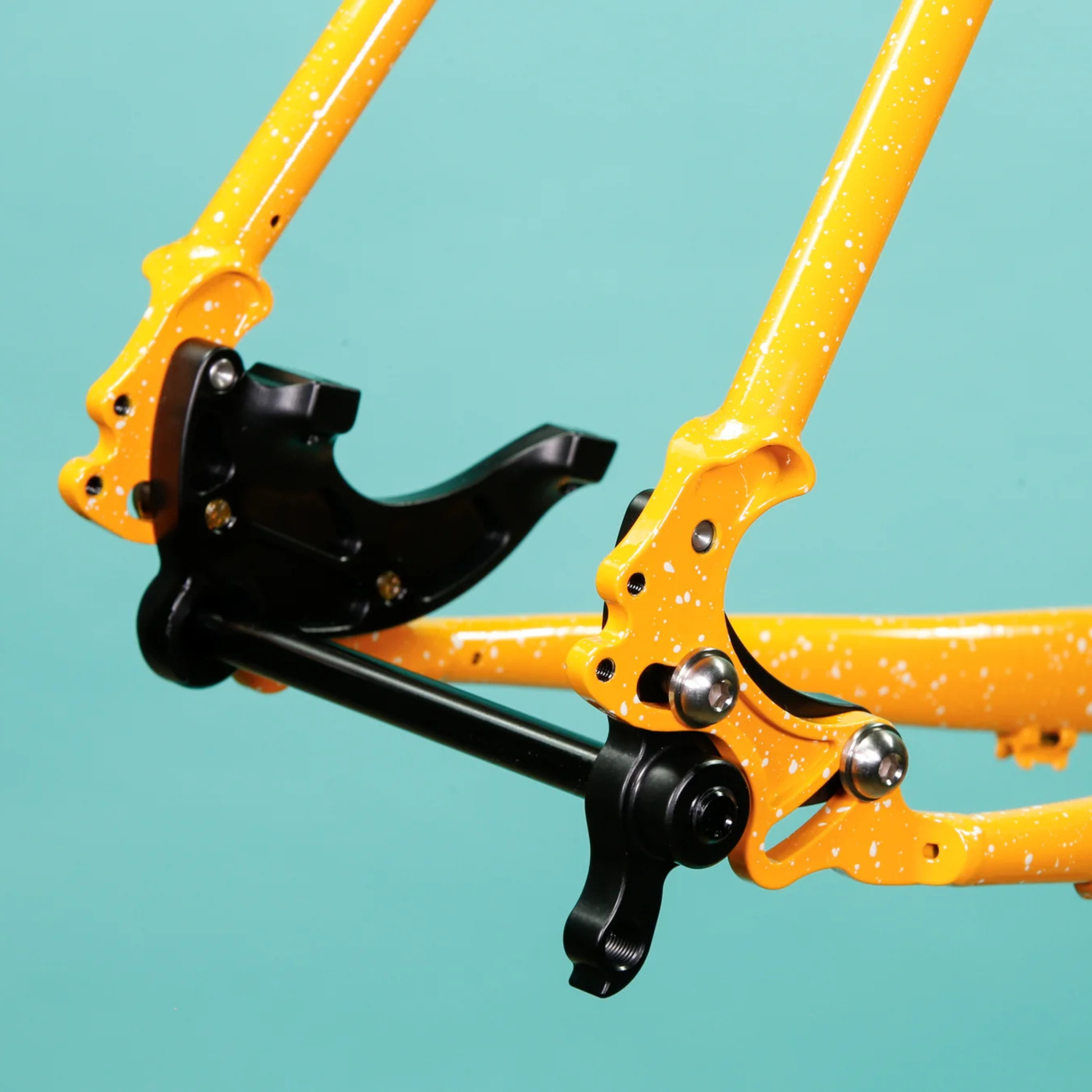

  • Crust Bikes Evasion frameset rear axle close up view
1 13

Crust Bikes

Evasion x Blue Lug Special Edition

Evasion x Blue Lug Special Edition

$2,295.00 CAD
$2,295.00 CAD $2,295.00 CAD
Sale Sold out
Shipping calculated at checkout.
Colour
Size

Description |

Crust Evasion is Crust’s do it all off road touring and big tire adventure frameset, built to carry gear, clear real rubber, and stay lively on rough roads. It is handmade in Taiwan from heat treated chromoly and TIG welded, with an ED coated finish on painted frames to help protect against internal corrosion.

The Evasion is designed around a 26 x 3.0 setup, and it can also be built with 27.5 wheels up to 2.8 tires, or 29 wheels up to 2.0 tires. Rocker dropouts add adjustability for single speed and Rohloff builds. Thru axles are included, and the headset is not included.

Features |

  • Heat treated chromoly frame and fork, TIG welded
  • Tire clearance designed around 26 x 3.0, also supports 27.5 x 2.8 and 29 x 2.0
  • Rocker dropouts for adjustability, single speed compatible and Rohloff compatible
  • Disc brake mounts, front IS mount requires adapter, rear mounts to rocker dropout and clears 160 mm rotor
  • Max rotor size 203 mm front, 180 mm rear
  • Thru axles included, headset not included

Specs |

Model Evasion
Brand Crust Bikes
Product Type Frameset (Frame and fork)
Frame Material Heat treated chromoly
Construction TIG Welded
Finish Painted frames are ED coated
Head Tube Spec 1 1/8 inch threadless steerer
Bottom Bracket 73 mm BSA threaded
Seatpost 27.2 mm
Seatpost Clamp 30.0 mm
Axles Spacing Axles included (front 12x100mm) (rear 12x148mm)
Axle to Crown 385 mm
Steerer Tube Length 400 mm
Brake Mounts Front IS mount, rear mounts to rocker dropout, max rotors 203 front and 180 rear
Tire Clearance 26 x 3.0, 27.5 x 2.8, 29 x 2.0
Weight Large 58 cm frame 2.66 kg, fork 1.36 kg
Use Off road touring, bikepacking, big tire adventure riding
