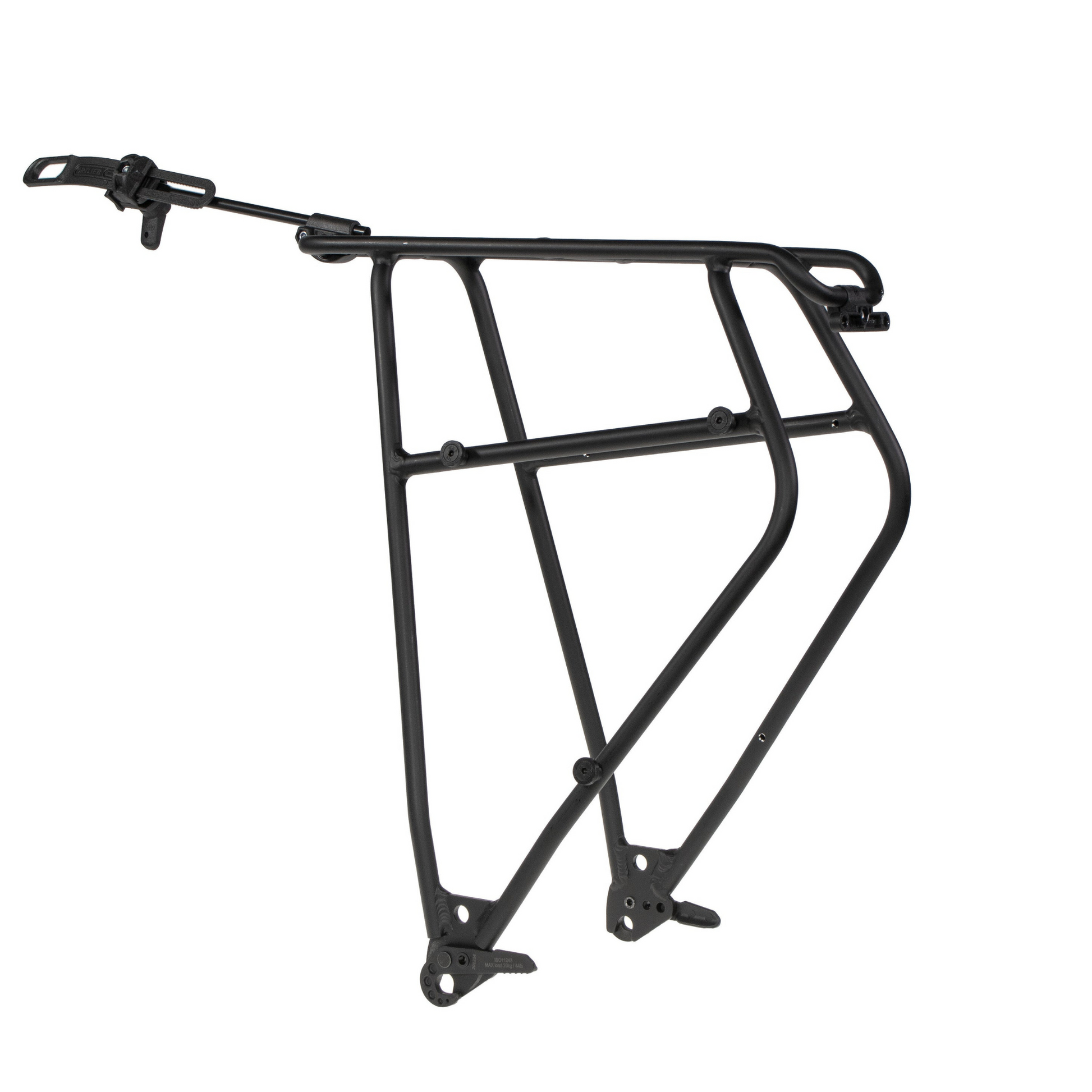

Quick Rack XL

Description |

Upgrade your bike instantly with the Ortlieb Quick‑Rack XL, a quick‑release luggage solution that converts any frame into a capable cargo carrier in under 15 seconds—then detaches just as swiftly in only 5. Its lightweight but robust aluminum design supports full‑suspension setups, e‑bikes, and accommodates tires up to 29 × 2.6″ when paired with an adapter.

Ride versatile with twin pannier compatibility (QL1, QL2/2.1/2.2 systems) and the Top‑Lock basket platform—perfect for combining panniers and a Trunk‑Bag or rack basket. Includes install kit for frame eyelets, adjustable struts, and ready-to-go hooks for rear light mounting. Enjoy clean aesthetics, powerful flexibility, and the strength to carry up to 59 lbs on any journey.

Features & Specs |

• Mount Time: Approximately 15 seconds to attach, 5 seconds to remove
• Material: Lightweight aluminum tubing
• Compatibility:
  • Fits tire sizes up to 29″ × 2.6″ (with adapter axle)
  • Supports full‑suspension, carbon frames, e‑bikes, and seatposts (M5/M6 mounting)
• Mounting Systems: QL1 / QL2 / QL2.1 / QL2.2 / QL3 / QL3.1 and Top‑Lock basket interface
• Load Capacity: 59 lbs
• Construction:
  • Horizontal & vertical struts: 12 mm tube diameter
  • Top platform: 10 mm tube diameter
• Includes:
  • Eyelet hardware (M5 & M6), extended stay (300 mm), rear light bracket, QL3/3.1 clamps
• Optional Accessories:
  • Quick‑Rack Mudguards (38 mm, 50 mm, 72 mm), Seat Stay Adapter, Thru‑Axle Connectors (M6 variants)
• Weight: ~780 g
• Made in: Germany
• Warranty: Ortlieb 5-year limited
• Part #: F78111

Usage Tips

• Use a quick‑release adapter axle if your bike lacks rack eyelets
• Combine with mudguards to keep you and gear clean in rain or grit
• Clip on panniers and a basket simultaneously for adventure or cargo versatility
• Check all mounting points and torque settings before riding
