Salsa
Stormchaser Frameset 56cm Demo
Stormchaser Frameset 56cm Demo
All Sale Framesets Ship for $50! Discounted framesets are final sale.
Couldn't load pickup availability
Description |
Demo Frameset, previously built.

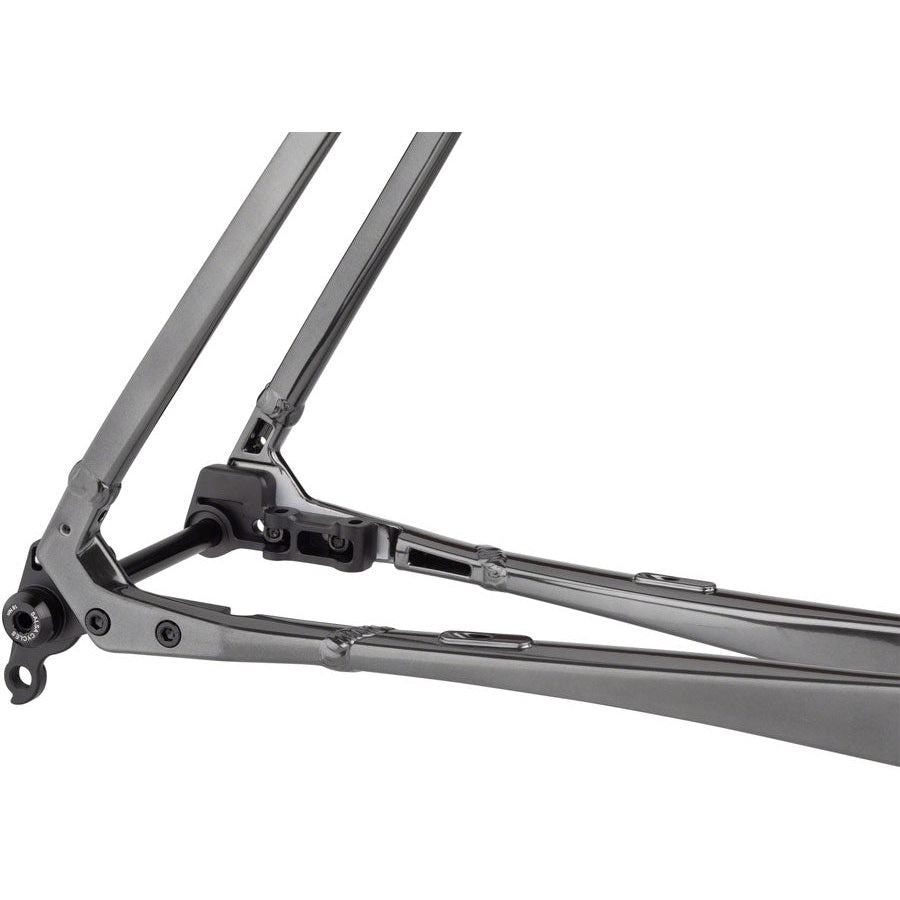

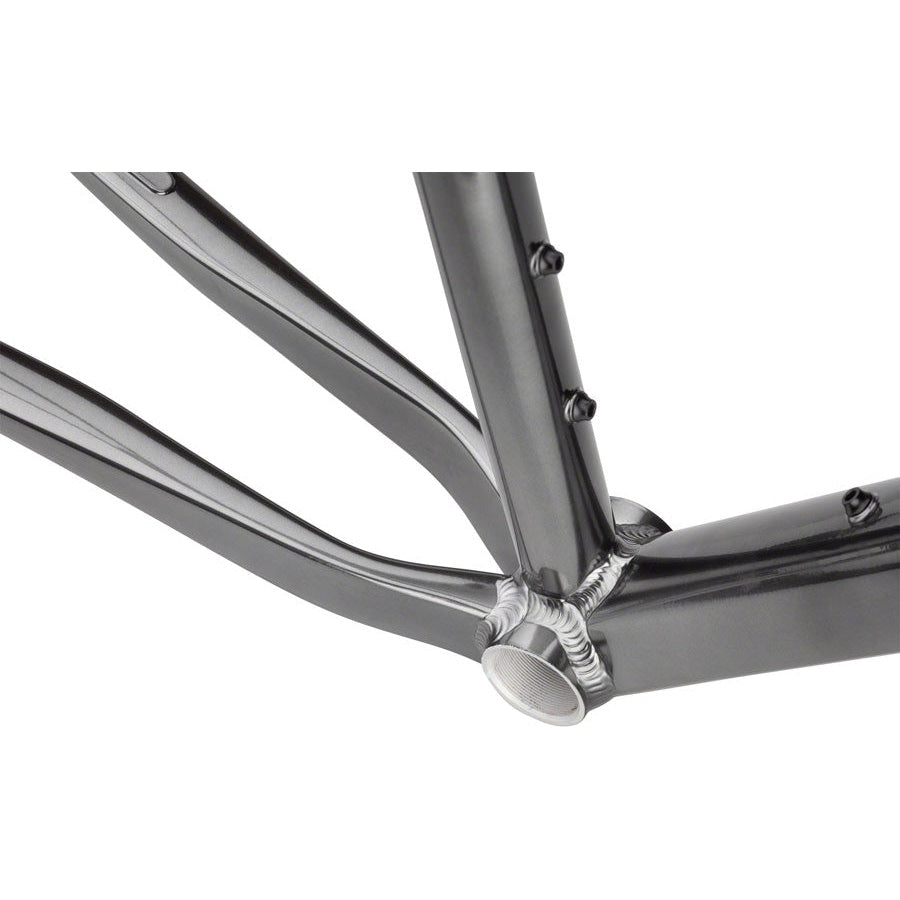

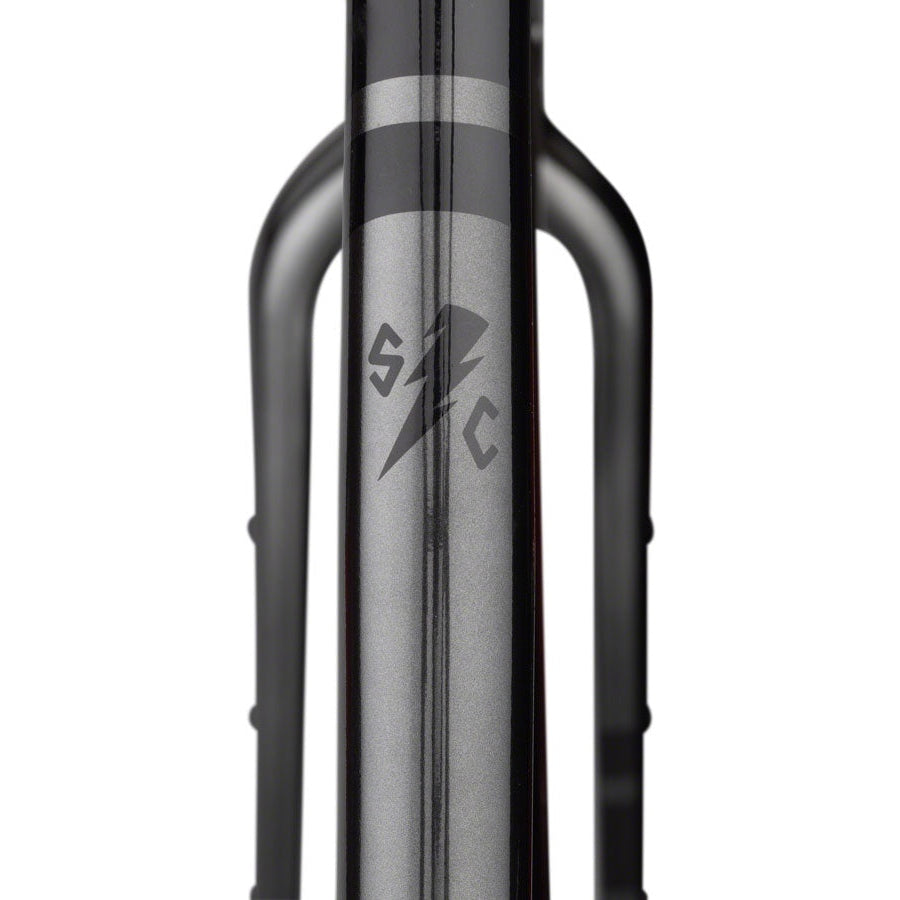

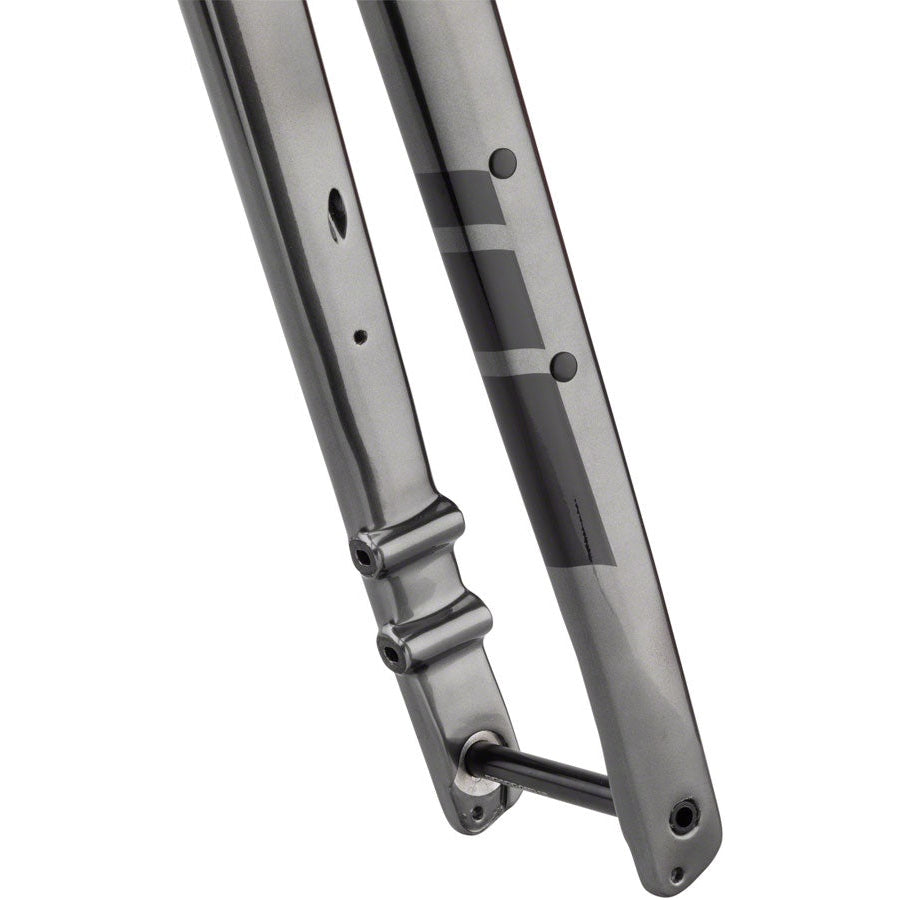

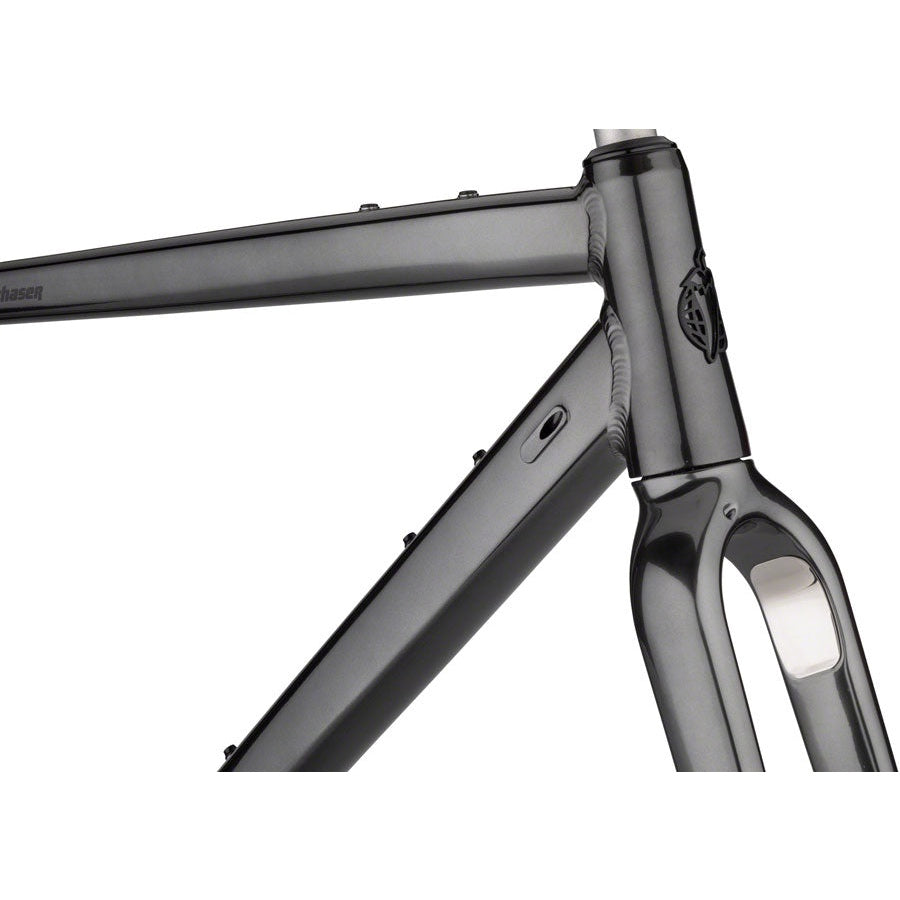

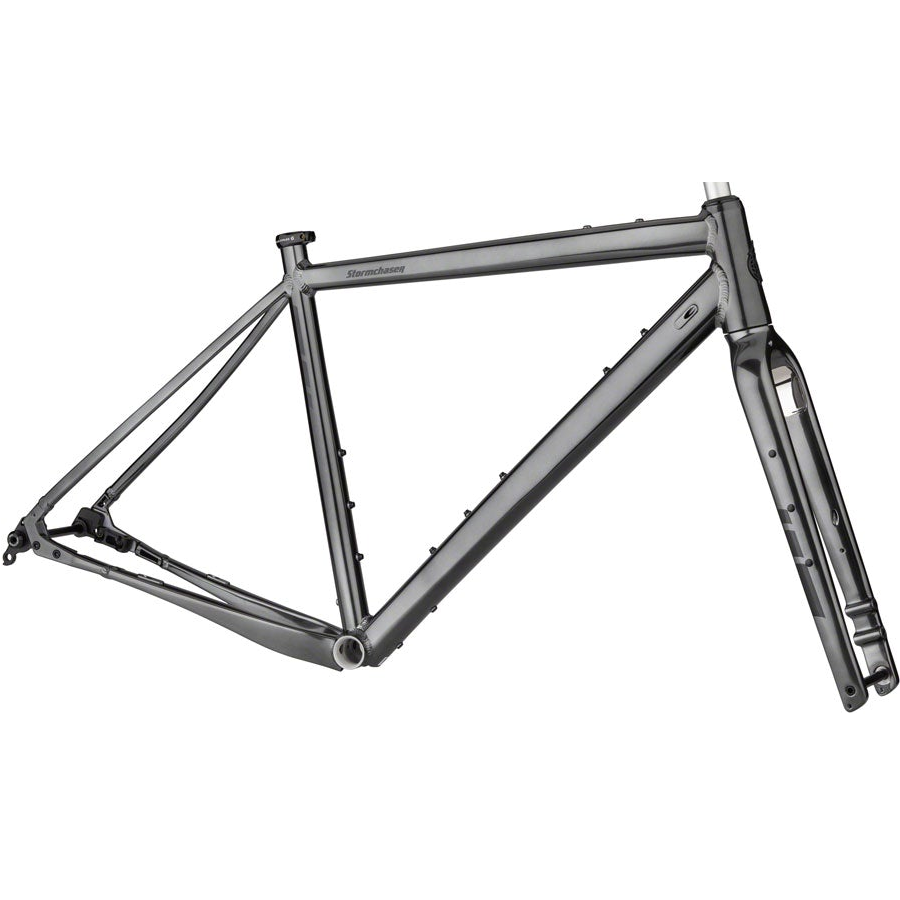

The Stormchaser single speed frameset is designed from the ground-up to take on gravel rides in inclement weather. The lightweight aluminum frame features gravel race geometry similar to Warbird; Class 5™ VRS to absorb road impacts; our all-new sliding Alternator Flat Mount dropouts make single speeding simple, and the included geared dropout plate adds 1x drivetrain compatibility; and extra tire clearance for managing mud. The carbon fiber fork is also prepared for anything—abrasion plates prevent wear from mud-caked tires, Three-Pack mounts add extra storage for water or gear, and internal routing keeps your brake hose and dynamo cable out of the elements. The Stormchaser single speed gravel frameset is a stellar starting point for a bike that performs rain or shine.
Specs |
| Frame | Stormchaser Aluminum |
| Fork | Stormchaser Carbon |
| Tire Sizes | 700 x 32-50mm, or 650b x 47-50mm |
| Fork Length | 420mm |
| Headset, Upper | IS41 |
| Headset, Lower | IS52 |
| Seatpost | 27.2mm |
| Seatpost Collar | 32mm |
| Dropper Compatible | Yes (internal) |
| Front Derailleur Clamp | N/A |
| Front Derailleur Type | N/A |
| Bottom Bracket | 73mm BSA, Threaded |
| Crankset (Max Ring - Single Speed) | 1x crankset, 40t max, Race Face/Easton 51mm chainline, single speed only |
| Crankset (Max Ring - Geared) | 1x crankset only, 38t max, 49mm MTN Chainline, 168 Q-factor Min. |
| Front Brake | Flat mount frame standard, 35mm thickness, 42mm bolt length (160mm rotor only) |
| Rear Brake | Flat mount frame standard, 20mm thickness, 27mm bolt length (140mm–160mm rotor) |
| Rear Spacing | 12 x 142mm TA |
| Rear Rack Mounts | Yes, Salsa Post-Lock seat collar required. Salsa Wanderlust recommended. |
| Fender Mounts | Yes, required hardware included |
| Max Tire Width w/ Fenders | 700 x 47mm |
| Water Bottle Mounts | Frames up to 56cm: 2 in main triangle; Frames 57.5cm and larger: 3 in main triangle |
| Downtube Accessory Mounts | Yes |
| Top Tube Mounts | Yes |
| Seat Clamp | 28.6mm |
| Front Spacing | 12 x 100 TA |
| Three-Pack Mounts | One per fork leg |
| Rack Mounts | 165mm Low-rider compatible |
