Revelate Designs

Mag Tank 2000 Bolt-On

Mag Tank 2000 Bolt-On

Regular price $95.00 CAD
Regular price $95.00 CAD Sale price $95.00 CAD
Sale Sold out
Shipping calculated at checkout.

Description |

The Mag-Tank™ 2000 utilizes the same proven, zipper-free magnetic access of the Mag-Tank but boasts 50% greater capacity. Now available as a bolt-on to utilize top tube bolt bosses!

Named after it's calorie holding capacity, the Mag-Tank 2000's tapered wedge shape gives it impressive volume while still offering a lean profile at it's base. A locking cam provides a secure front attachment, while still utilizing the adjustable daisy chain to allow clearance from stem clamp bolts. The bag's closed cell foam padded base and stiffened side panels provide protection and structure for food and electronics with the ease of fast, one handed access.

Please note - While the cover to this bag is designed to shed rain and spray, due to the large panel opening it is not a sealed bag or waterproof bag. Additionally, while the closure is secure there is the possibility that small or loose objects can come out of the bag from rough trails or lying the bike on it's side. We recommend small items like loose keys and gummy bears are put in a ziplock.

Features |

  • Single handed access with effortless magnetic closure

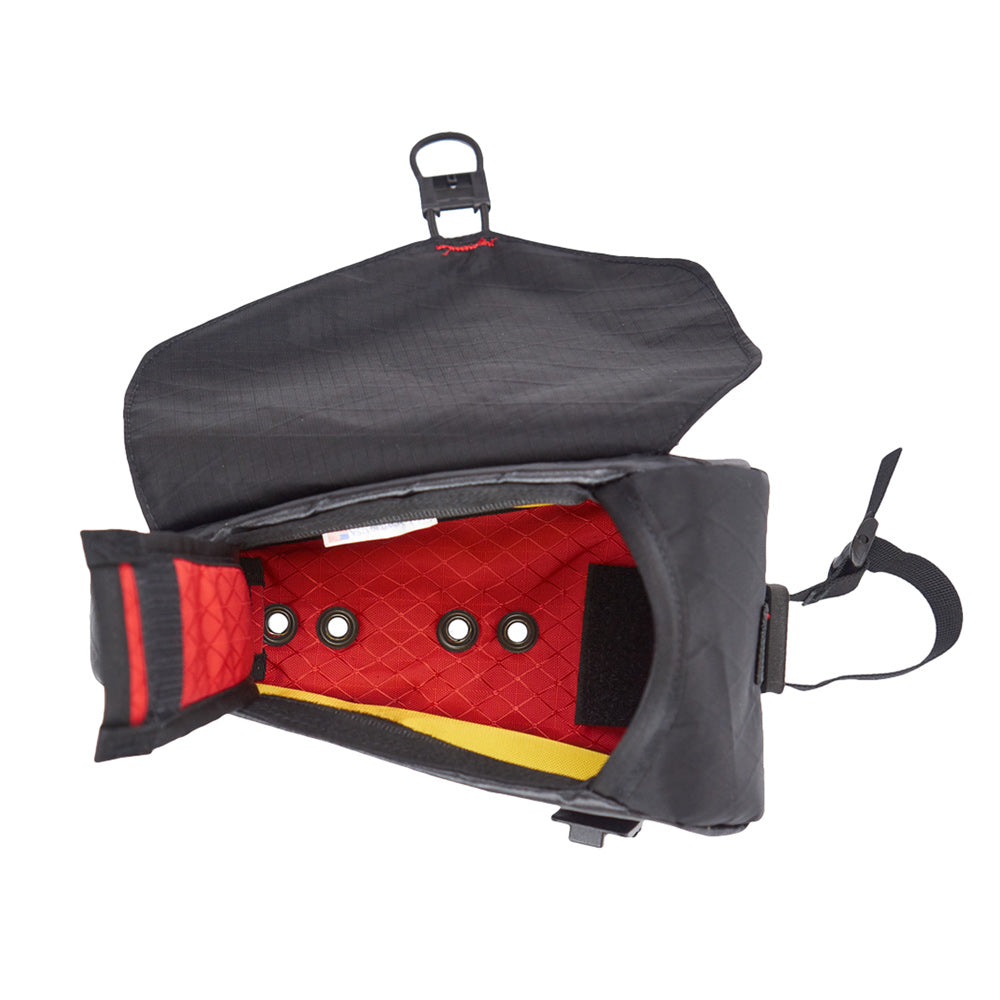

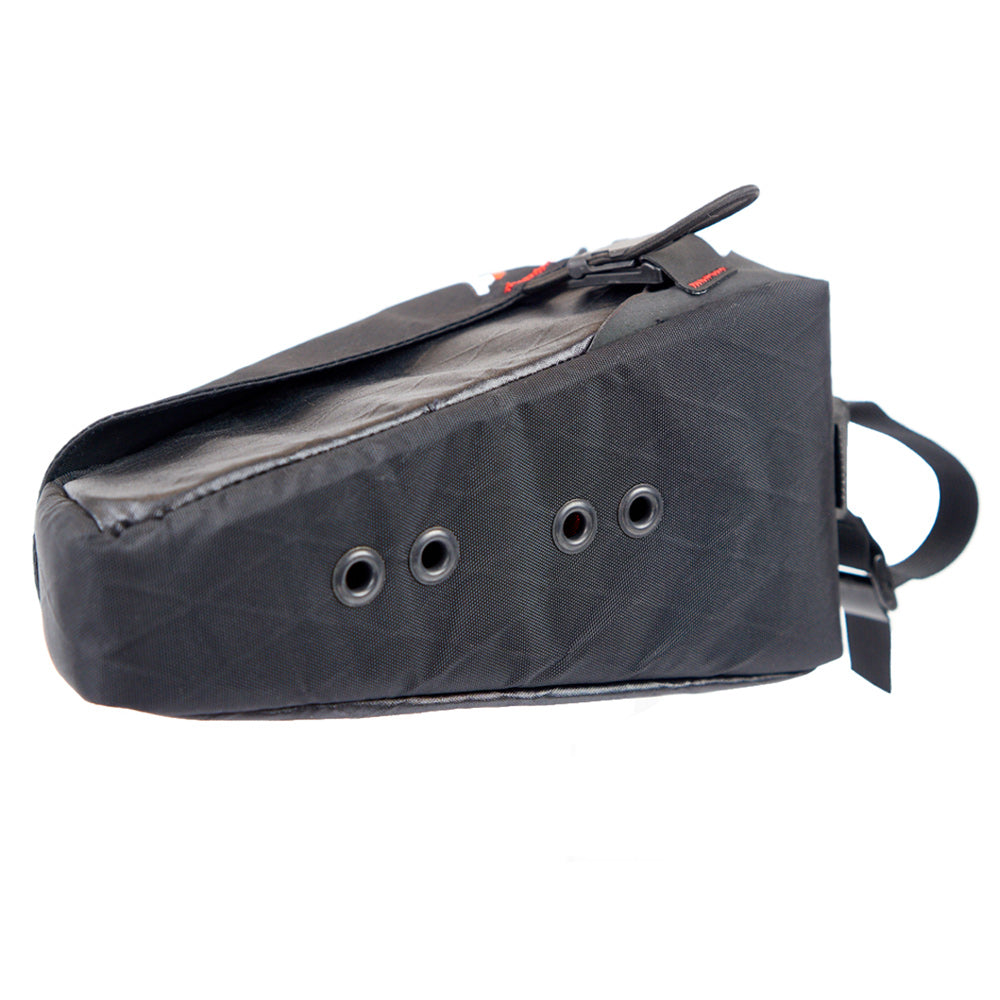

  • Two sets of mounting holes on bag bottom to allow bolt-on attachment to top tube

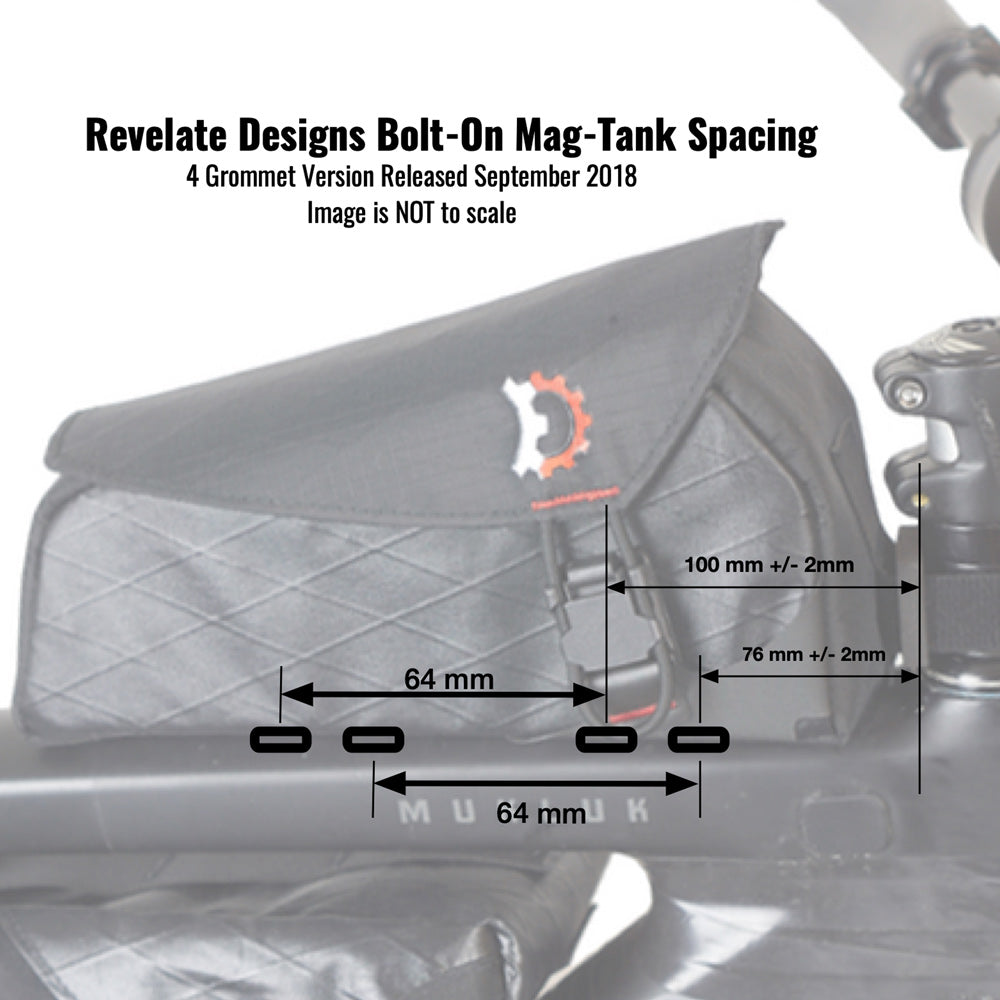

    • First set of mounting holes spaced 76 mm (+/- 2 mm) from front of bag
    • Second set of mounting holes spaced 100 mm (+/- 2 mm) from front of bag
    • Distance between mounting holes is 64 mm (standard water bottle cage spacing)
  • Velcro secured, padded bag bottom conceals mounting bolts
  • Side panels stiffened with HDPE plastic sheets
  • Interior lined with yellow fabric for greater visibility

Specs |

Weight 5.2 oz / 147 grams
Volume 85 in³ / 1.4 L
Materials Dimension Polyant VX-21 with abrasion resistant finish & 42 X-Pac; 420 denier yellow and red lining; closed cell foam padded tube sections. HDPE sheets. Nickel plated grommets. Imported.


Fit |

Height (H) 4.5" / 114mm
Length (L) 9.5" / 241mm
Width (W) 4.5" / 114mm at stem; tapers to 1.5" / 38mm at rear


Mounting bolts are not included. During test fitting we have noticed that longer bolts may be needed on some bikes.
